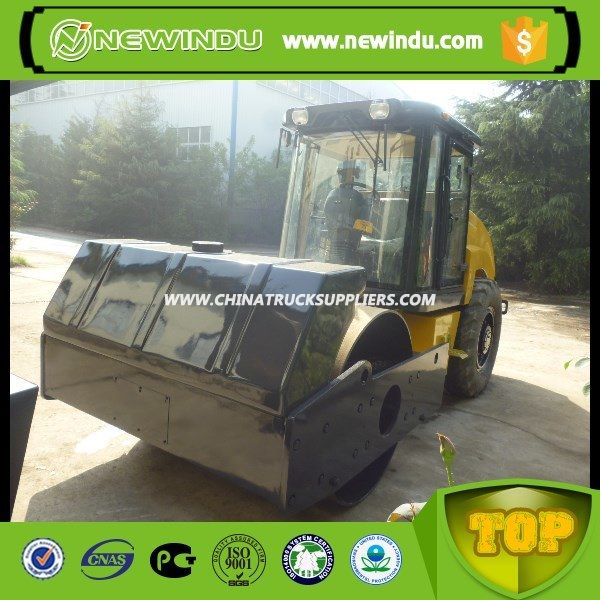

12 Ton Roller Lutong Single Drum Vibratory Roller Lt212

LT212 Mechanical single drum vibratory roller
1. Operating mass----12000Kg
2. Diesel engine model---YC 6108G
3. Engine power----85KW
4. Drum width----2100mm

LT212 Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as candy soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.

1.Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2.Reliable YC6108 diesel engine for convenient operation and maintenance.
3.Two sets of brake devices, a hand brake and foot pedal brake, assure the machine's safety and dependability.
4.Spacious and comfortable cab mounted on top quality rubber damping elements.
5.World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.

Model		LT212
Operating mass	Kg	12000
Static linear load	N/cm	276
Vibration amplitude	Mm	1.8/0.9
Vibration frequency	Hz	30
Centrifugal force	KN	270/140
Travel speed
1st	km/h	1.8
2nd	km/h	3.7
3rd	km/h	9.7
Grade ability	%	35
Turning radius	mm	6500
Overall dimension	mm	5640x2258X2930
Min. ground clearance	mm	360
Drum width	mm	2100
Drum diameter	mm	1400
Drum rim thickness	mm	24
Type size		17.5-25
Wheelbase	mm	3080
Diesel engine model		YC 6108G
Diesel power	Kw	85
Fuel tank capacity	L	180
Hydraulic tank capacity	L	150
Diesel speed	r/min	2000

-------------------
