Lutong Double Drum Ltc212 Road Roller Price List
- USD 1.60 /Unit
- 1 Unit
- 95 Unit
- 12 days
Product Description

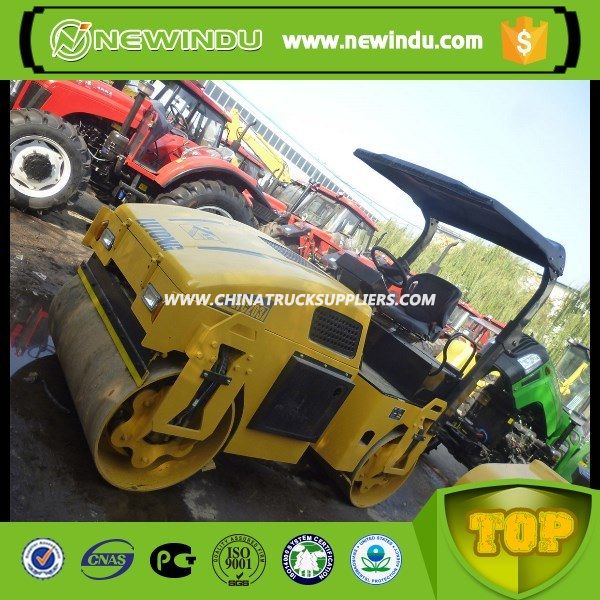

LUTONG double drum LTC212 road roller price list
Thanks for your enquiry about the roller for tractor from alibaba. We ,Luoyang Chunqiu IMP &EXP Trading Co.,Ltd. is aprofessional manufacture and trading company for engineering machinery(including road roller, loader, excavator, bulldozer, motor grader) and their spare parts. We have our own factory Luoyang Chunqiu Machinery Equipment Co.,Ltd. which could produce small road rollers by ourselves.
What's more, we also deal road rollers from 800kgs to 30000kgs. There areMechanical/Hydraulic drive Single/ Double drum vibratory road rollers ,and pneumatic tire road rollers. They are made in China with YTO /LUOJIAN/LUTONG Brand, which are all famous brands in China, as well as the abroad market.
-------------------
Amanda
Mobile: +8618721040484
https://www.facebook.com/amanda.huang.44
amanda[at]newindu[dot]com
Http://www.evangelchina.com/
Newindu E-Commerce(Shanghai) Co., Ltd&Evangelchina Construction Machinery Solutions
Address: Suite 1305, Fortune Times Tower, No. 1438 North Shanxi Road
Thanks for your enquiry about the roller for tractor from alibaba. We ,Luoyang Chunqiu IMP &EXP Trading Co.,Ltd. is aprofessional manufacture and trading company for engineering machinery(including road roller, loader, excavator, bulldozer, motor grader) and their spare parts. We have our own factory Luoyang Chunqiu Machinery Equipment Co.,Ltd. which could produce small road rollers by ourselves.
What's more, we also deal road rollers from 800kgs to 30000kgs. There areMechanical/Hydraulic drive Single/ Double drum vibratory road rollers ,and pneumatic tire road rollers. They are made in China with YTO /LUOJIAN/LUTONG Brand, which are all famous brands in China, as well as the abroad market.
Main Technical Parameters | |||
MODEL | LTC212 LTC214 | LTC210 LTC208 | |
Operating mass | kg | 12000/14000 | 10000/8000 |
Font axle load | kg | 6000/7000 | 5000/4000 |
Rear axle load | kg | 6000/7000 | 5000/4000 |
Stactic linear load | N/cm | 286/333 | 238/231 |
Form of frame | fork-type | fork-type | |
Crabwise movement distance | mm | 170 | 170 |
Water tank capacity | L | 2x600 | 2x400 |
Fuel tank capacity | L | 154 | 80 |
Hydraulic tank capacity | L | 65 | 65 |
Vibration fraquency | mm | ||
High ampl | 0.8 | 0.67 | |
Low ampl | 0.4 | 0.34 | |
Vibration fraquency | hz | ||
High ampl | 40 | 45 | |
Low ampl | 46 | 50 | |
Centrifugal force | kN | ||
High ampl . | 160x2 | 90x2 | |
Low ampl . | 90x2 | 69x2 | |
Travel speed | km/h | 0-12 | 0-11.1 |
Turning radius | mm | 7000 | 6000 |
Grade ability | % | 40 | 40 |
Steering angle | ° | ±35 | ±35 |
Drum diameter | mm | 1350 | 1150 |
Drum width | mm | 2100 | 1730 |
Drum rim thickness | mm | 20 | 16 |
Transverse swing angle of the vibrating wheel | ° | ±8 | ±8 |
Type of water spray | mm | pressure | pressure |
Wheel base | mm | 3717 | 3217 |
Overall length | mm | 5060 | 4558 |
Overall width | mm | 2250 | 1840 |
Overall hieght | mm | 3300 | 2674 |
Ground clearance | mm | 324 | 324 |
Diesel model | CUMMINS 6BT5.9 | CUMMINS 4BT3.9 | |
Diesel power | kW | 110 | 75 |
Diesel speed | r/min | 2300 | 2400 |
-------------------
