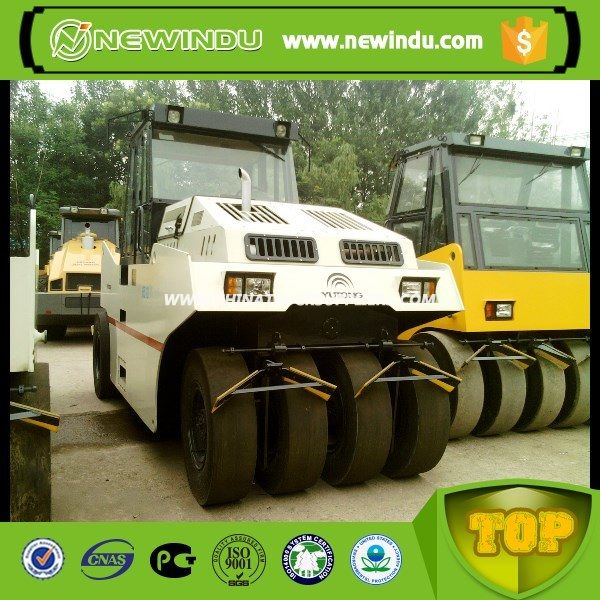

Ltp2030 Phenunatic Road Roller

LTP2030 Hydraulic phenunatic road roller - 30ton road roller

Pneumatic tyre roller series are designed for the compact cohesive and non-cohesive materials, such as asphalt concrete, cement or lime stabilized soils, gravels, sands and clay mixtures, Rolling Cement Concrete(PCC)in the construction projects, especially suitable for the preparation of the upper courses of high grade highway.

Main Features
LTP2030,LTP1826,LTP1016 Low gravitational center designed for safe and comfortable operation.
LTP2030,LTP1826 adopt CUMMINS 6BTA diesel engine. Powerful strength, which is suitable to all environments.
Three forward speed and two backward changes.Reinforced plastic spraying box and multi-layer water filter ensure the stability of the system.
With stepless speed changes LTP2030H,LTP1826 H,LTP1016H is easy and reliable to operate.
Power strength,LTP1016,LTP1016H which adopted 4BT Cummins engine,is suitable to all environments.

Main technical parameter

MODEL		LTP2030	LTP1016	LTP2030H	LTP1826H	LTP1016H
Operating mass (Unballast/Ballast)	kg	20000/30000	10000/16000	20000/30000	18000/26000	10000/16000
Max. travel speed	Km/h	20.64	14.7	10	10	14
Tyre quantity(front+rear)	pcs	5+6	4+5	5+6	5+6	4+5
Min.turning radius	mm	8000	7500	8000	8000	7500
The presses the width	mm	2790	2280	2790	2790	2280
Grade ability	%	30	30	30	30	30
Overall dimension	mm	4950×2750×3240	4780×2100×3200	4950×2750×3240	4950×2750×3240	4780×2100×3200
Wheelbase	mm	3800	3700	3800	3800	3700
Diesel power	KW	125	75	125	125	75
Diesel model		6BTA5.9	4BT3.9	6BTA5.9	6BTA5.9	4BT3.9
