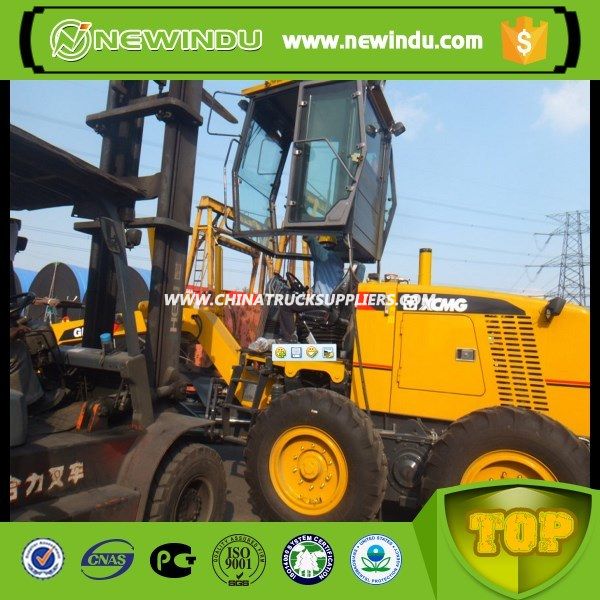

XCMG 100HP Motor Grader Price Gr100 with Ripper and Blade

XCMG 100HP Motor Grader Price GR100 with ripper and blade

Features:

The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling ,slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

Performance and characteristic

New appearance design.

The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.

The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3back gears.

The international matching hydraulic parts are adopted,with reliable operation.

The motions of the blade are fully hydraulically controlled.

The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .

The cab is grand and nice,with wide eyeshot and good sealing .

The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added

Contact way:
Sales Manager
April Chen
Newindu E-Commerce(Shanghai)Co.,Ltd.
Add:Suit 1326, Fortune Times Tower, No. 1438 North Shanxi Road, China
Mobile :+86-135 8550 0864
Web:http://www.evangelchina.com

Our company:
Newindu E-commerce (Shanghai) Co., Ltd. is aleading Chinese construction machinery exporter, located in the downtown of Shanghai City. Since our company was founded, based on the advantage of XCMG which is the No. 1Chinese construction machinery manufacturer, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as Changlin, Zoomlion, LiuGong, HOWO, Shantui, HBXG, YTO, etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.

Out products:

1) ALL kinds of trucks.
(Dump Truck, mining dump truck, tractor truck, truck trailer ,towing truck ,water tank truck, concrete mixer truck, oil tank truck, Garbage Truck, Cargo truck, port terminal tractor, refrigerated truck, Truck Mounted Crane, fire truck, suction sewage truck, bus ,etc)

2) All kinds of construction machinery.
(Wheel loader, excavator, folklift, cranes, paver, road roller etc.)

Need more information? Just contact me please!

Parameters:

Basic specification
Engine model	4BT3.9
Rated power/speed	75/2400kw/rpm
Dimension(LxWxH)	6880×2375×3150mm
Operating weight(Standard)	7000kg
Performance specification
Travelling speed ,forward	5,10,20,39km/h
Travelling speed ,reverse	8,25km/h
Tractive force(f=0.75)	41.6KN
Max. gradeability	20%
Tire inflation pressure	350KPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box
frame articulation angle	±27°
Min. turning radius using articulation	5.9m
Biade
Maximum lift above ground	300mm
Maximum depth of cutting	350mm
Maximum blade position angle	45°
Blade cutting angle	28°-70°
Circle reversing rotation	120°
Moldboard width Xheight	3048×500mm
