New XCMG Gr165 170HP Motor Grader

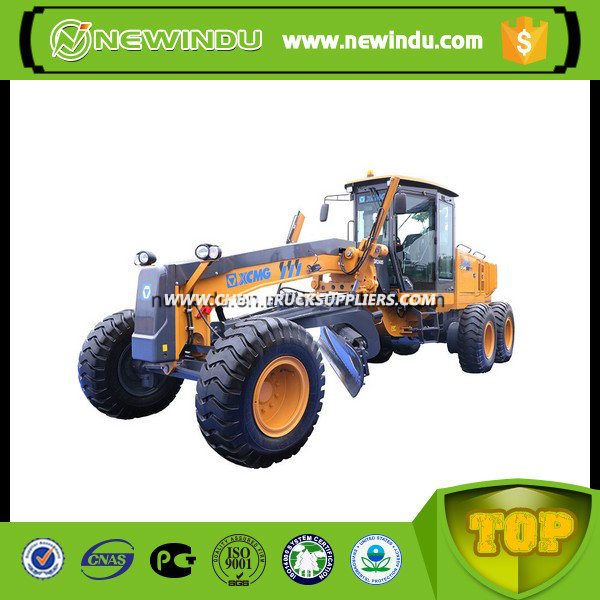

New XCMG GR165 170HP Motor Grader

The XCMG GR Series Motor Graders are mainly used in ground leveling ,canalling , slope scraping ,earthmoving ,scarification or snow removal work on road, airfield ,farmland ,and so on .They are necessary construction machines for national defense engineering ,mine construction, town and country roads building ,and farmland improvement..

Performance and characteristic

New appearance design.

The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and flexible.

The electro-hydraulic controls the power shift gearbox,with 6ahead gears and 3 back gears.

The international matching hydraulic parts are adopted,with reliable operation.

The motions of the blade are fully hydraulically controlled.

The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.

The manipulation table and seats are adjustable. The arrangement of the manipulation handle and instruments are reasonable,with convenient application,and the comfort of driving is improved .

The cab is grand and nice,with wide eyeshot and good sealing .

The front bulldozing plate,rear scarification device,front scarification harrow and automatic leveling device can be added

Engine model	D6114
Rated power/speed	125kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15000kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	77KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°-70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm

More Pictures for XCMG GR165 Motor Grader:
