Chinese Brand Mini Excavators 6 Ton Crawler Excavator Xe60c

FOB Price: USD 30000.50 /Unit
Min.Order: 1 Unit
Supply Ability: 47 Unit
Delivery time： 28 days

Product Description

Welcometo Newindu!

Asauthorizeddealer,wespecializeinexportingfullkindsofexcavatormadebyChinesefamousfactory,including SDLGCHANGLIN,FOTON,LIUGONG,CHENGGONG.

Ourcompanywillofferyouthebestqualityproductswithreasonable

price,quickdelivery,andprofessionalafter-saleservice.

Pleasedon'thesitatetoletusknowifyouhaveanyquestionsabout

theproducts.Yourreplywouldbehighlyappreciated.

Chinese brand mini excavators 6ton crawler excavator XE60C

Mini Excavator XE60C

1.Bucket:0.23m3
2.Rated power:39kw
3.The operating weigh:5,960kg

Model		Unit	XE60C
Operating weight		kg	5960
Standard bucket capacity		m³	0.09-0.23
Engine	Engine model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
Performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	9.5
	Max. gradeability	/	35
	Ground pressure	kPa	32.2
	Max.Bucket digging force	kN	42.5
	Max.arm crowd force	kN	28.5
	Max.traction force	kN	50.5
Hydraulic system	Main pump	/	Japan rexroth
	Rate flow of main pump	L/min	2*60.5+40.3+9.9
	Max pressure of prime relief valve	MPa	22
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	23
	Max pressure of pilot system	MPa	2.9
Oil capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
Overall dimension	Overall length	mm	5860
	Overall width	mm	1920
	Overall height	mm	2590
	Overall width of upperstructure	mm	1780
	Track length	mm	2540
	Overall width of undercarriage	mm	1920
	crawer width	mm	400
	Dozer black(width/height)	mm	1920*340
	Tumbler distance	mm	1990
	Crawer gauge	mm	1480 *1500
	Clearance under counter weight	mm	710
	Ground clearance	mm	385
	Min.tail swing radius	mm	1660
Operating range	Max. digging height	mm	5630
	Max. dumping height	mm	3945
	Max. digging depth	mm	3830
	Max. vertical wall digging depth	mm	2680
	Max. digging reach	mm	6130
	Min. swing radius	mm	2460
	Max.dozer lifting height	mm	390
	Max.dozer cutting depth	mm	560
	Angle of arm deflection	Degree	/

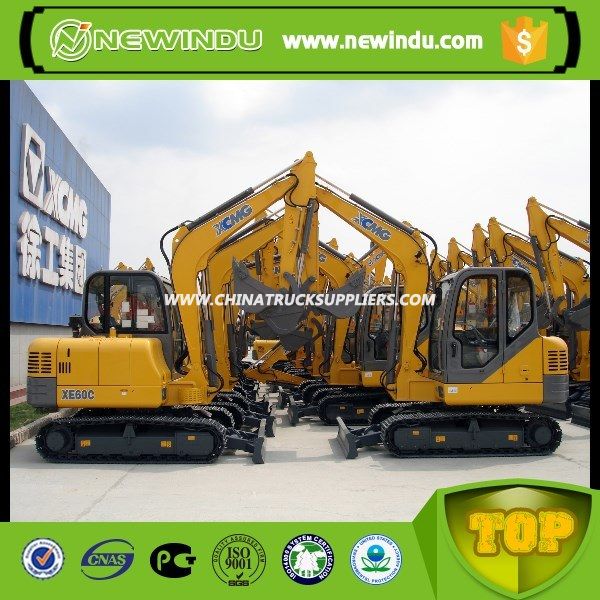

Product Images
