8ton Foton Lovol Mini Excavator Price
- USD 35000.00 /Unit
- 1 Unit
- 79 Unit
- 25 days
Product Description

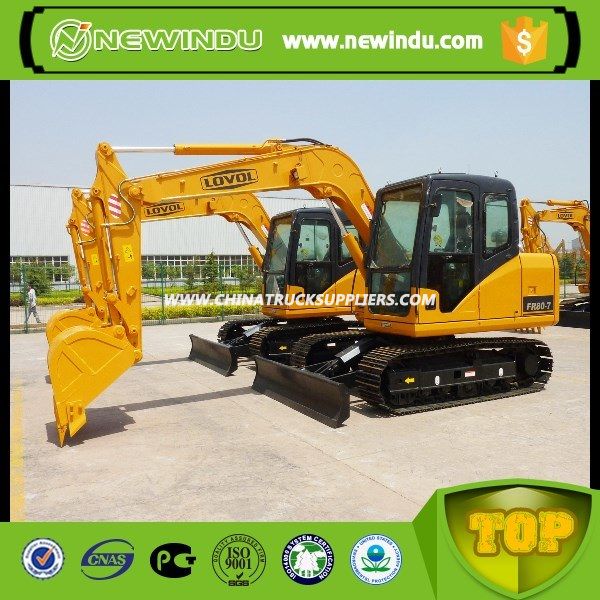

Foton Lovol 8ton DIGGER /excavator
1.Rated Power: 52.1,56.7/2150kw/rpm
2.Engine Model:imported AA-4JG1TPC engine
3.Operating Weight: 8Tons
4.Model:Foton lovolexcavator FR80G
Paramerer: Foton Lovol 8ton DIGGER /excavator
| Main Parameters | |
| Operation Weight (Standard Configuration) (KN) | 8300 |
|---|---|
| Standard Bucket Capacity | 0.32 |
| Transport Dimensionsmm | 6100*2275*2485 |
| Bucket Digging Force (KN) | 61 |
| Bucket Rob Digging Force (KN) | 44 |
| Maximum Traction (KN) | 83 |
| Device | |
| High-low Speed (Km/h) | 5.2/2.6 |
| Climbing Performance(°) | 30 |
| Total Length of the Crawler | 2765 |
| Tail Turning Radius (mm) | 1750 |
| Width of the Crawler | 450 |
| Ground Pressure (Kpa) | 37 |
| Turning Mechanism | |
| Turning Speed (rpm) | 11.5 |
| Engine | |
| Model | AA-4JG1TPC |
| Form | Four Strokes, Direct Injection, Water-cooling, Overhead Valve, Belt Pressurization |
| Rated Power/Rotate Speed (KW/rpm) | 52.1,56.7/2150 |
| Rated Torque/Rotate Speed (N.m/rpm) | 242,268/1800 |
| Cylinder Diameter*Stroke (mm) | 95.4*107 |
| Output Value (L) | 3.059 |
| Fuel Consumption (g/KW.h) | 257 |
| Hydraulic System | |
| Fuel Tank Capacity (L) | 110 |
| Main Pump Pressure (Mpa) | 24.5 |
| Main Pump Flow | 160 |
| Operating Scope | |
| Maximum Digging Height (mm) | 7150 |
| Maximum Dumping Height (mm) | 5030 |
| Maximum Digging Depth (mm) | 4050 |
| Maximum Digging Radius (mm) | 6335 |
Product Images
-
