New Xe40 Mini Excavator Construction Machinery

New Xe40 mini Excavator construction machinery
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:
New Xe40 mini Excavator construction machinery

Model	Operatingweight	Kg	4050
	Bucketcapacity	M³	0.14
	Enginemodel	/	4TNV88
	Directinjection	/	√
	4xstrokes	/	√
Engine	Watercooling	/	√
	Cylinders	/	4
	Outputpowerofengine	KW/rpm	27.6/2200
	Maxtorque/speed	N.m/rpm	142/1320
	Displacement	L	2.19
	Travelspeed	Km/h	4.2/2.6
	Slewingspeed	r/min	13.5
Main	Gradientcapability	°	30°
performance	Groundpressure	kPa	36.3
	Diggingcapacityofbucket	KN	23.2
	Diggingcapacityofbucketrod	KN	19.3
	Maxtractionforce	KN	33.9
	Ratedflowofmainpump	L/min	1x110+11
Hydraulic	Pressureofmainsadetyvalve	MPa	21
system	Pressureoftravelingsystem	MPa	21
	Pressureofswingsystem	MPa	21
	Pressureofpilotsystem	MPa	3.9
	Fueltankcapacity	L	65
Oilvolume	Hydraulictankcapacity	L	70
	Engineoilvolume	L	7.4
		Unit	Parameters
	ATotallength	mm	5455
	BTotalwidth	mm	1650
	CTotalheight	mm	2440
	DWidthofrotarytable	mm	1500
Apperance	ETotalwidthofchassis	mm	1635
Size	FTrackwidth	mm	300
	GTread	mm	1721
	HTrackgauge	mm	1335
	IGroundclwarananceofcounterweight	mm	578
	JMin.groundclearance	mm	350
	Dozerblade(width/height)	mm	1650x300
	AMax.diggingheight	mm	5317
	BMaxunloadingheight	mm	3700
	CMaxdiggingdepth	mm	3600
Working	DMaxverticaldiggingbepth	mm	2580
Scope	EMaxdiggingradius	mm	5810
	FMaxswingradius	mm	2385
	GMintailswingradius	mm	1490
	Maxliftingheightofdozerblade	mm	255
	Maxdiggingdepthofdozerblade	mm	375
Standard	Boomlength	mm	2695
Configuration	Lengthofbucketrod	mm	1600
	Bucketcapacity	M³	0.14

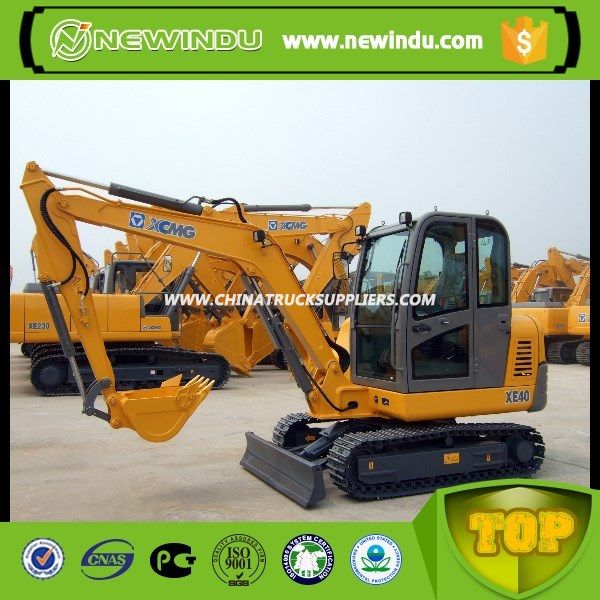

Product image:
