Construction Small Hydraulic Crawler Xe150d Excavator

Construction Small hydraulic Crawler XE150d Excavator

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:

Construction Small hydraulic Crawler XE150d Excavator

Parameter:

	Unit	Parameters
Model	Operating weight	Kg	14400
	Bucket capacity	M³	0.52~0.61
	Engine model	/	ISUZU BB-68G1TRP
	Direct injection	/	√
	4×Strokes	/	√
Engine	Engine model	/	4BTAA3.9
	Direct injection	/	√
	4x strokes	/	√
	Water cooling	/	√
	Turbocharging	/	√
	A/A Air-air intercool	/	√
	Cylinders	/	4
	Output power of engine	KW/rpm	85.4/2200
	Max torque/speed	N.m/rpm	447/1500
	Displacement	L	3.927
	Digging capacity of tcuket	kN	138
	Digging capacity of tcuket rod	kN	103
Main Performance	Max.traction	kN	184
	Travel speed	Km/h	5.2/3.4
	Slewing speed	r/min	12.3
	Gradient capability	°	≤35°
	Ground pressure	KPa	38
	Digging capacity of bucket	KN	85
	Digging capacity of bucket rod	KN	65
	Max traction force	KN	135
	Hydraulic tank capacity	L	220
Hydraulic System	Engine oil volum	L	25
	Main pump	/	Two plunger pumps
	Rated flow of main pump	L/min	2x120
	Pressure of main sadety valve	MPa	31.4/34.3
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	25
	Pressure of pilot system	MPa	3.9
	G Width of track	mm	600
Oil volume	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine oil volume	L	14

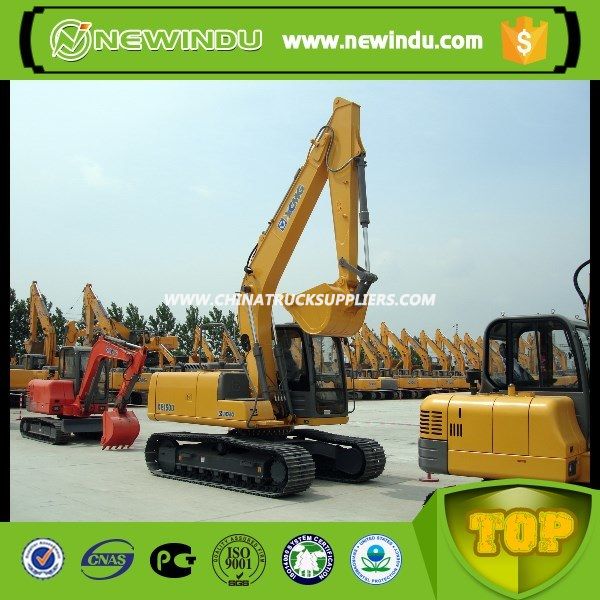

Product image:
