Crawler Excavator Hydraulic Small Xe65D Excavator

crawler Excavator hydraulic small XE65D Excavator
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:
crawler Excavator hydraulic small XE65D Excavator

Parameter:

Model		Unit	XE65D
Operating weight		kg	6200
Standard bucket capacity		m³	0.09-0.25
Engine	Engine Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
Performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	11
	Max. gradeability	/	35
	Ground pressure	kPa	32.5
	Max.Bucket digging force	kN	48.3
	Max.arm crowd force	kN	32.5
	Max.traction force	kN	50.5
Hydraulic system	Main pump	/	Rexroth/Mr Gail
	Rate flow of main pump	L/min	138/143
	Max pressure of prime relief valve	MPa	24.5
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	23
	Max pressure of pilot system	MPa	2.6
Oil capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
Overall dimension	Overall length	mm	5860
	Overall width	mm	2000/1920
	Overall height	mm	2585
	Overall width of upperstructure	mm	1780
	Track length	mm	2616
	Overall width of undercarriage	mm	2000
	crawer width	mm	400
	Dozer black(width/height)	mm	2000*363/1920*340
	Tumbler distance	mm	2053
	Crawer gauge	mm	1600*1500
	Clearance under counter weight	mm	694
	Ground clearance	mm	369
	Min.tail swing radius	mm	1660
Operating range	Max. digging height	mm	5630
	Max. dumping height	mm	3945
	Max. digging depth	mm	3830
	Max. vertical wall digging depth	mm	2680
	Max. digging reach	mm	6130
	Min. swing radius	mm	2460
	Max.dozer lifting height	mm	383/390
	Max.dozer cutting depth	mm	474/560
	Angle of arm deflection	Degree	/

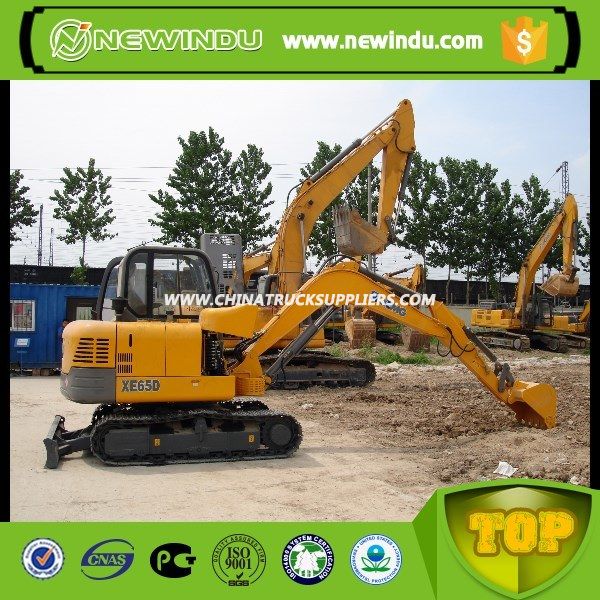

Product image:
