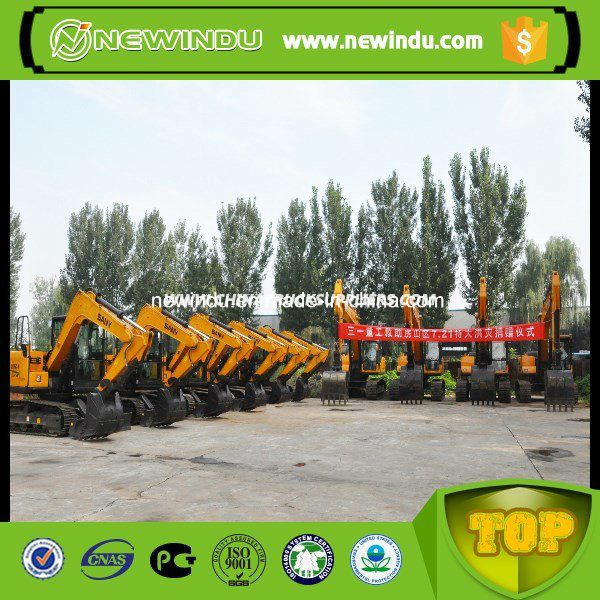

Sy140 14 Tons Excavator Best Price for Sale

SY140 14Tons Excavator Best Price

Specifications

Engine model	Isuzu 4BG1-TABGC-03-C2	Rated power	98HP(72.7KW)/2200rpm
Max.torque	337.6/1600N.m./rpm	Displacement	4.329L
Emission standard	Tier 2	Operating weight	13545kg
Max. digging height	8326mm	Max. dumping height	5858mm
Max. digging depth	5117mm	Max. vertical digging depth	4125mm
Max. digging reach	7952mm	Min. swing radius	2410mm
Height at min.swing radius	6498mm	Transport length	7766mm
Transport width	2550mm	Transport height	2800mm
Upper width	2490mm	Blade height	2800mm
Tail swing radius	2348mm	Min. ground clearance	425mm
Counterweight ground clearance	909mm	Std. track shoe width	500mm
Bucket capacity	0.72m³	Track shoes(per side)	44
Carrier roller(per side)	1	Lower roller(per side)	7
Track gauge	1990mm	Roller gauge	2930mm
Boom length	4600mm	Arm length	2100mm
Travel speed	5.1/2.9km/h	Swing speed	12rpm
Bucket digging force	93.7kn	Arm digging force	68.9kn
Fuel tank	240L	Hydraulic tank	150L
Engine oil	13.2L	Engine coolant	10L
Boom cylinder bore xstroke	105×990mm	Arm cylinder bore xstroke	115×1175mm

------------------
