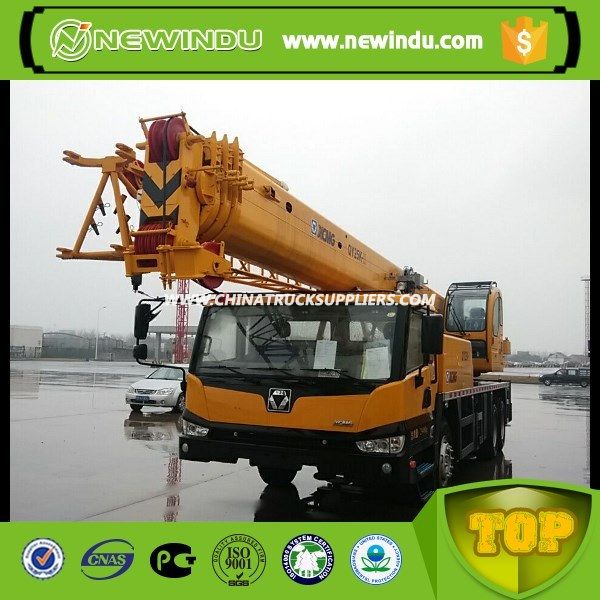

Lifting Equipment Mobile 130ton Qy130K Truck Crane

lifting equipment mobile 130ton Qy130K Truck Crane
Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775
Web: www.newindu.com

Product description:
construction machine 130ton QY130K truck crane

Classificatory	Item	Unit	Parameter
Outline dimension	Overall length		mm	14950
	Overall width		mm	3000
	Overall height		mm	3950
	Axle base	Axle 1, Axle 2	mm	1420
		Axle 2, Axle 3	mm	2420
		Axle 3, Axle 4	mm	1875
		Axle 4, Axle 5	mm	1350
		Axle 5, Axle 6	mm	1400
	Wheel base		mm	2610/2307
Mass	Total mass in travel state		kg	62000
	Axle load	Axle 1, Axle 2	kg	8800/8800
		Axle 3, Axle 4	kg	9200/12700
		Axle 5, Axle 6	kg	12700/9800
Power	Crane superstructure engine	Rated power	kw/(r/min)	162/2100
		Rated torque	N.m/(r/min)	854/1400
		Rated speed	r/min	2100
	Crane carrier engine	Rated power	kw/(r/min)	390/1800
		Rated torque	N.m/(r/min)	2400/1080
		Rated speed	r/min	2000
Travel performance	Travel speed	Max. travel speed	km/h	70
		Min. stable travel speed	km/h	2.1
	Min. turning diameter		m	24
	Min. ground clearance		mm	275
	Approach angle		(°)	23
	Departure angle		(°)	14
	Braking distance (at 30km/h)		m	≤ 10
	Max. grade-ability		%	40
	Fuel consumption for 100km		L	80
