Product Description

LIUGONG CLG842 IVWHEEL LOADER FOR SALE

CLG842 IV wheel loader with 15t cum engine 2.7m3 bucket 193 hp MAIN PARAMETER


Model

CLG842 IV

Bucker performance

2.7 m³

Operating weight

15200kg

Engine

emission regulation

Tier 4interim/StageIIIB

make

Cum

gross power

149kW (200hp) @2,200 rpm

net power

141.55kW (190hp) @2,200 rpm

peak torque

929N.m @1400 rpm

displacement

6.7L

number of cylinders

6

aspiration

turbo air-to-air aftercooled

Transmission

Transmission Type

countershaft,power shaft

Torque Converter

single- stage,three-element

Maximum Travl Speed.fwd

42.1km/h

Maximum Travl Speed.rev

26.6km/h

number of Speed.fwd

4

number of Speed.rev

3

Brakes

Service Breake Type

full hydraulic wet-discs brake

Service Breake Actuation

hydraulic

Parking Brake Type

auto and manual air controlled

Parking Brake Actuation

hydraulic

Hydraulic system

Main pump Type

vane

Main Relief Pressure

20Mpa

Raise

5.8s

Dump Time

1.1s

Float Down Time

3.8s

Fastest Total Cycel Time

10.7s

Loader arm performance

Tipping load-straight

12449kg

Tipping load-Full Turn

10816kg

Bucket Breakout Force

136kN

Maximum Dump Angle at Full Height

45°

Dump Clearance at full height discharge

2981mm

Dump reach at full height discharge

1007mm

Maximum hinge pin height

3907mm

Maximum Digging depth,Bucket level

32mm

Bucket rollback at ground level

43°

Bucket rollback at carry

49°

Bucket rollback at maximum height

60°

Dimensions

Length with bucket down

7721mm

width over tires

2479mm

wheelbase

3000mm

wheel Tread

1950mm

Ground Clearance

410mm

Turn Angle,Either Side

40°

Rear Angle of Departure

25°

Turning Radius,Outside of Tire

5480mm

Turning Radius,Center of Tire

5100mm

Turning Radius,Bucket Carry

6029mm

Service Capacities

FuelTank

330L

Engine Oil

17L

Cooling System

68L

Hydraulic Reservoir

240L

Transmission and Torque Converter

45L

Axles,each

36L

Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader

Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader
Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader
Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader
Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader
Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader

------------------
Amanda
amanda[at]newindu[dot]com
Mobile +8618721040484
Facebook:www.facebook.com/amanda.huang.44
Newindu E-Commerce(Shanghai) Co., Ltd
Made-in-China:newindu.en.made-in-china.com
Evangel Industrial (Shanghai) Co.,Ltd
www.evangelchina.com
Address:Suite 1305, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Product Images

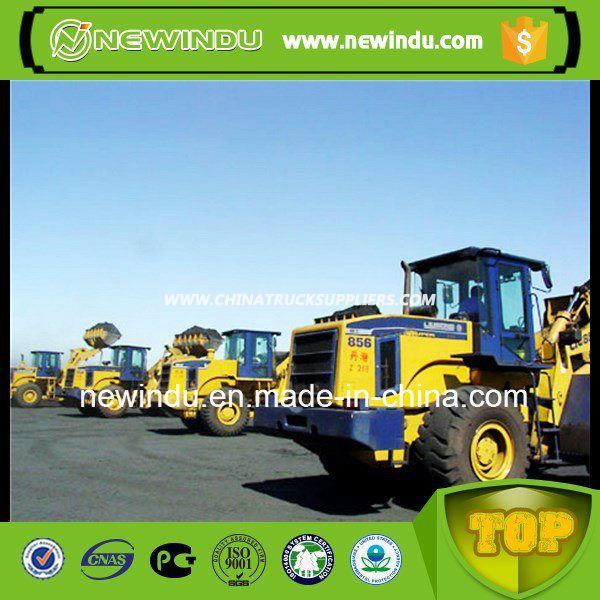

Liugong Clg842 IV Wheel Loader with 2.7m3 Bucket 200HP Front End Loader Images 1
