Product Description:

cost effective 1.8m3 construction LW300FN Wheel Loader

Item	Specification	Unit
Rated operating load		3000	kg
Bucket capacity		1.5~2.5	m³
Machine weight		10600±200	kg
Dump clearance at maximum lift		2770~3260	mm
Reach at maximum lift		1010~1210	mm
Wheel base		2600	mm
Tread		1850	mm
Height of hinge at maximum lift height		3830	mm
Working height(fully lifted)		4870	mm
Max.breakout force		130	kN
Max.horse power		95	kN
Hydraulic cycle time-raise		5.5	s
Total hydraulic cycle time		10	s
Min. turning radius over tyres		5165	mm
Articulation angle		35±1	°
Gradeability		28	°
Tyre size		17.5-25-12PR
Overall machine dimension L×W×H		7050×2482×3118
Model		WP6G125E22
Emission standards		Emission 2
Rated Power/Speed		92/2300	kW/rpm
Fuel Tank		170	L
Hydraulic Tank		170	L
	-gear(F/R)	8/10	km/h
	-gear(F/R)	13/30	km/h
Travel speed	-gear(F)	24/-	km/h
	-gear(F)	40/-	km/h

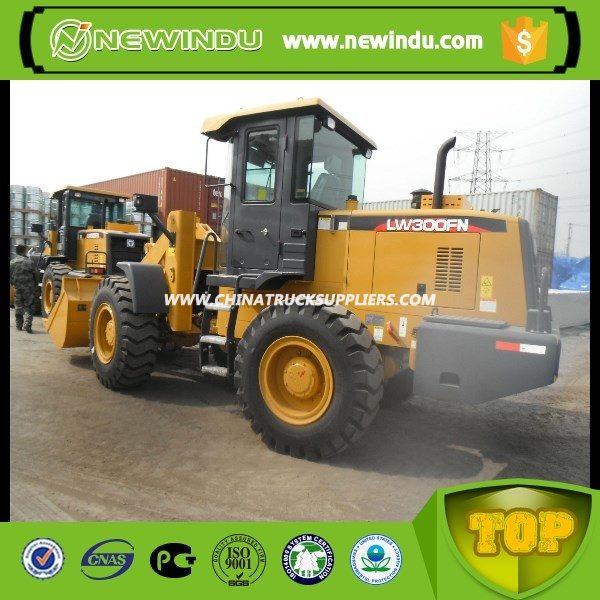

Product image:
