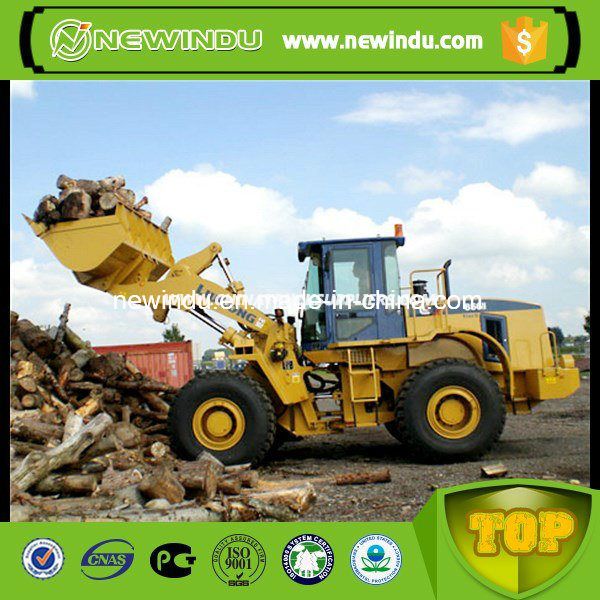

Liugong 7ton Wheel Loader Clg877III with Ce Certification

Liugong 7ton Wheel Loader Clg877III with Ce Certification

Parameters

Model		CLG877III
Bucker performance		4.2 m³
Operating weight		24500kg
Engine	emission regulation	Tier2/StageIIIA
	make
	gross power	216kW (290hp) @2,100 rpm
	net power	205kW (275hp) @2,100 rpm
	peak torque	1478N.m @1400 rpm
	displacement	10.8L
	number of cylinders	6
	aspiration	turbo air-to-air aftercooled
Transmission	Transmission Type	countershaft,power shaft
	Torque Converter	single- stage,three-element
	Maximum Travl Speed.fwd	36.5km/h
	Maximum Travl Speed.rev	27km/h
	number of Speed.fwd	4
	number of Speed.rev	3
Brakes	Service Breake Type	wet multi disc
	Service Breake Actuation	hydraulic
	Parking Brake Type	auto/manual electronic controlled
	Parking Brake Actuation	spring apply:hydraulic release
Hydraulic system	Main pump Type	vane
	Main Relief Pressure	20.7Mpa
	Raise	6.45s
	Dump Time	1.31s
	Float Down Time	3.66s
	Fastest Total Cycel Time	11.42s
Loader arm performance	Tipping load-straight	19260kg
	Tipping load-Full Turn	16820kg
	Bucket Breakout Force	218kN
	Maximum Dump Angle at Full Height	45°
	Dump Clearance at full height discharge	3200mm
	Dump reach at full height discharge	1300mm
	Maximum hinge pin height	4369mm
	Maximum Digging depth,Bucket level	133mm
	Bucket rollback at ground level	46°
	Bucket rollback at carry	50°
	Bucket rollback at maximum height	60.6°
Dimensions	Length with bucket down	9113mm
	width over tires	2966mm
	wheelbase	3450mm
	wheel Tread	2270mm
	Ground Clearance	458mm
	Turn Angle,Either Side	38°
	Rear Angle of Departure	26°
	Turning Radius,Outside of Tire	6493mm
	Turning Radius,Center of Tire	6145mm
	Turning Radius,Bucket Carry	7260mm
Service Capacities	FuelTank	410L
	Engine Oil	38L
	Cooling System	41L
	Hydraulic Reservoir	250L
	Transmission and Torque Converter	62L
	Axles,each	45L

------------------
