Earthmoving 5ton Machine Lw500fn Wheel Loader

earthmoving 5ton machine LW500FN Wheel Loader

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile +86-18616224775

Web: www.evangelchina.com

Product Description:

earthmoving 5ton machine LW500FN Wheel Loader

Item	Specification	Unit
Rated operating load		5000	kg
Bucket capacity		2.5~4.5	m³
Machine weight		16900	kg
Dump clearance at maximum lift		3150~3560	mm
Reach at maximum lift		1100~1190	mm
Wheel base		2960	mm
Tread		2250	mm
Height of hinge at maximum lift height		4112	mm
Working height(fully lifted)		5510	mm
Max.breakout force		170	kN
Hydraulic cycle time-raise		6	s
Total hydraulic cycle time		10.5	s
Min. turning radius over tyres		5950	mm
Articulation angle		35	°
Gradeability		28	°
Tyre size		23.5-25-16PR
Overall machine dimension L×W×H		7910×3016×3515
Model		WP10G220E21
Rated Power		162	Kw
Fuel Tank		250	L
Hydraulic Tank		210	L
Travel speed	-gear(F/R)	13/18	km/h
	-gear(F/R)	40	km/h

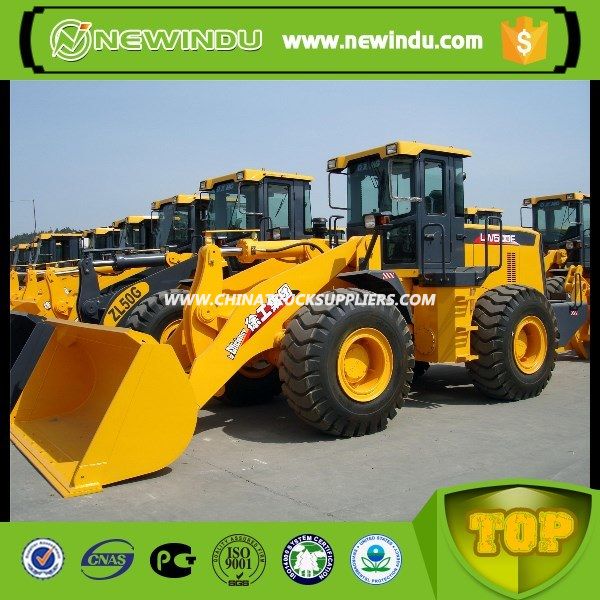

Product image:
