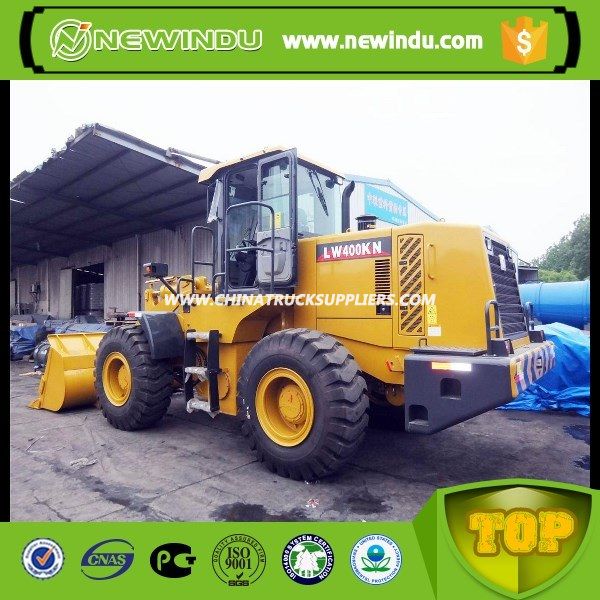

Earthmoving Equipment Front 4 Ton XCMG Wheel Loader Lw400K

Earthmoving Equipment Front 4 Ton XCMG Wheel Loader Lw400k

Feature

Great strength

Tilt cylinder bore of160mm, enlarge the boom cylinder bore from110mmto125mm, and increase the boom lifting force by 29%.
12-ton strong tilt drawing force guarantees the outstanding adaptation to various tough conditions.
7-ton strong boom lifting force ensures various operation methods of high intensity.
High efficiency
The adopted 125 work pump features large displacement, strong oil supply, and the total time of three devices is only 10.3s.
The turning radius is only5420mm, short running distance, fast loading speed, saving the fuel and high efficiency.
Single pump distribution, load-sensing steering, large flow, enough power, simple and high efficiency.
High strength
Heavy load design. The front and rear frames adopt box type, featuring thickness and high intensity.
The key structural parts adopt finite-element analysis, ensuring the adaptation to various dangerous working conditions.
Long service life
The key articulated positions feature two-stage dust-proof, less abrasion and longer service life.
Wear resistant blade and bucket teethfeature longer service life.
The hydraulic pipe adopts 24° cone and O ring, settling the issue of leakage.
Easily worn oil pipe is equipped with the protective bush, prolonging the service life.
High factor of full bucket
Long bucket bottom, sharp bucket type, easily cutting in, much material.
Lessen the opening angle, reduce the section, easily push in and lift.
Convenient maintenance
The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.

Parameters

Item	Parameter	Unit
Rated bucket capacity	2.4	m3
Rated load	4000	kg
Operating weight	14200	kg
Max.traction	123	kN
Max.drawingforce	130	kN
Tyre center (turning radius)	5946	mm
Boom lifting time	5.5	s
Total time of three devices	10.5	s
Tipping load	8300	kg

Engine	Model	D6114ZGB	6BTA5.9-C
	Type	6-cylinder, 4-stroke, inline water cooling exhaust turbocharging	6-cylinder, 4-stroke, inline water cooling exhaust turbocharging
	Rated power	125	123	kW
	Rated rotary speed	2200	2200	r/min
Travel speed	Forward I Gear	0~11		km/h
	Forward II Gear	0~35		km/h
	Backward	0~15
