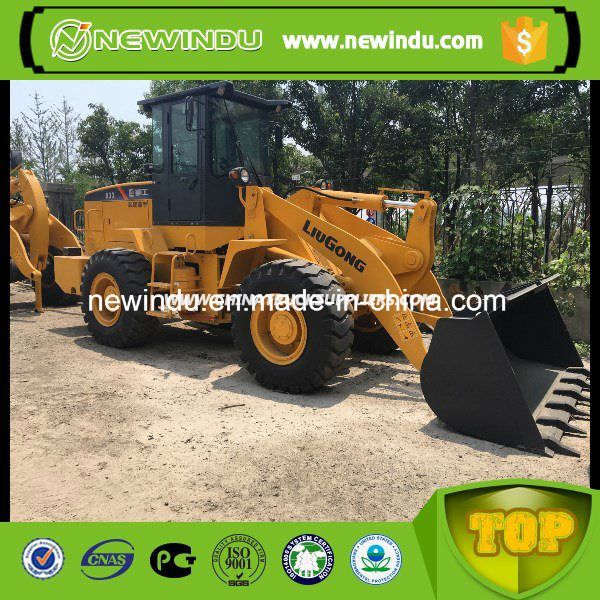

Liugong Clg856 Wheel Loader 5 Ton

Liugong Wheel Loader CLG856

Bucket capacity: 3m3
Rated load: 5000kg
Max Breackout force: 158KN
Operating weight: 16800kg
Engine
Brand: Cummins(Made in China)
Rated power: 215HP(160KW)
Number of cylinders-borexstroke: 6-114x135mm
Total air displacement: 8.3L

Dimension:
Over Lenghth: 8060
Overall width (outside of type): 2750
Over height: 3467
Bucket width: 2976
Dumping distance at the highest position: 1035
Max. Traction force: 160
Max. Climbing gradient: 30 degree
Wheel base: 3315
Wheel track: 2150

Transmission System
Brand: ZF (Germany)
Hydraulic torque converter:
Transmission type: Dead axle. Hydraulic shifting, direct gear, constant mesh
Type of main Transmission: Single-stage spiral bevel gear deceleration
Speed ratio: 4.875: 1
Reduction ratio: 22.547: 1

Axle: Liugong Brand
Driving type: Four-wheel driving
Tyre: 23...5-25(Liugong Brand)
Air pressure of tire: 0.32Mpa

Working hydraulic pressure
Number of lifting cylinder-borexstroke: 2-φ 160x794
Number of bucket cylinder-borexstroke: 1-φ 180x540
Working pressure: 20MPa

Steering System
Type: Type: Articulated full hydraulic steering
Number of steering cylinder-borexstroke: 2-φ 90x485
Steering pump: CBGj2080
Working pressure: 16MPa
Steering angle: 38 degree
Displacement of steering pump: 50ml/r

Brake System: Air-pushing disc brake on four wheels

------------------
