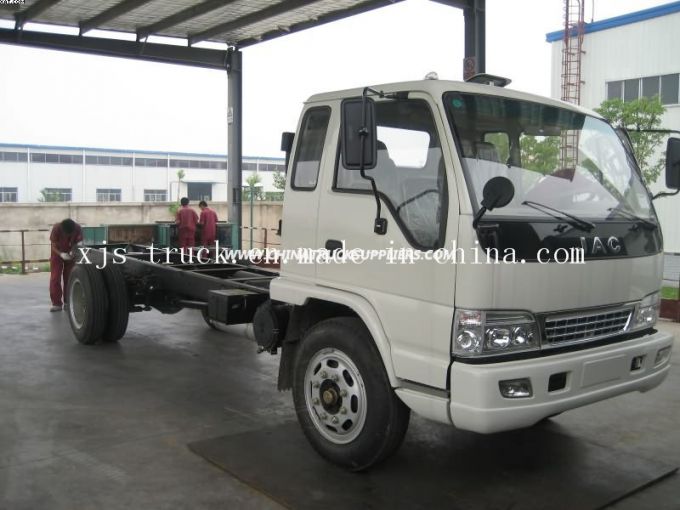

JAC Light CBU Truck (Hfc1083kr1 G109)

1.Original parts2.Good quality3.Quick quotation4.Reasonable price5.Best serviceHFC1083KR1 G109 LEFT HAND DRIVETruck part,spare part,engine part,part.Light truck engine model:YSD490Q HFC4DA1 HFC4DA1-1 HFC4DA1-2B HFC4DA1-2B1CY4102BQ C4110 CY4102BZQ CY4102BQ CY4102BZLQ CY4102BQ YZ4105QFCA4DF2 YZ4108Q YC4E140-33Light truck transmission model:LG515 LG5-20E30 LG5-20E27 JAC MSB-5M JAC MSB-5N LC5T30 LC5T46 LC5T97LG5-30 QHS5-30 LC6T46 All of them euqipped by JAC light truck:HFC1020 SERIES,HFC1040 SERIES,HFC1045 SERIES,HFC1048 SERIES,HFC1061 SERIES,HFC1063 SERIES,HFC1083 SERIES,HFC3040 SERIES,HFC3041 SERIES,HFC3048 SERIES,HFC3072 SERIES.Heavy truck engine model:WD615.56 260HP YC6M280-20 280HPWD615.50 290HPWD615.31 310HPYC6M320-20 320HPWD615.46 360HPISM380E 20 380HP ISM440E 20 440HPHeavy truck transmission model:CA6T123-85 6J80T 8JS105T 9JS119 12JS160 RT11509F 12JS180 F6J95TB LC6T160 8JS118TC 9JS150T-B All of them euqipped by JAC Heavy duty truck:HFC1131KR1,HFC1251KR1 SERIES,HFC3251KR1 SERIES,HFC3311KR1 SERIES,HFC4251KR1 SERIES,HFC5255GJB SERIES.

Specifications
Model		HFC1083KR1
Serious Number		G109
Cabin		King Cab
Engine		CA4DF2
Type		in line-4, ind-cooler turbocharged, diesel
Displacement (cc)		4752
Compression Ratio		17
Max Power (HP/rpm)		95.6kw130/2500
Max Torque (N.m/rpm)		390/1500
Transmission		LC6T46
Speed Ratio		6.314,3.913,2.262, 1.393,1, 0.728,R5.874
Gear Position		5 3 1 R 6 4 2
Final gear ratio		G1QZ-5.714
Brake system		air brake
Tyre		7.50-20
Overall Dimensions(mm) (L*W*H)		8390*2270*2366
Cargo Dimensions(mm)(L*W*H)		6200*2110*550
Tread (front / rear )(mm)(/)		1830/1724
Wheelbase(mm)		4700
Curb Weight (kg)		4410
Max Load Capacity(kg)		6000
Gross Vehicle Weight(kg)		10605
Min Turing Radius(m)		9
Min Ground Clearance(mm)		233
Max Speed(km/h)		98
Seating Capacity		3
Max Gradeability(%)		32
frame Section Size(mm)		230*75*6
Configuration
Air Conditioner
Power Steering		√
Pre-heater		√
Wind deflector
Sidebumper		√
Rear bumper		√
Power Assist of the clutch		√
Digital Radio		√
Exhaust Braking		√
New model cabin 808		E412
Else		ABS
