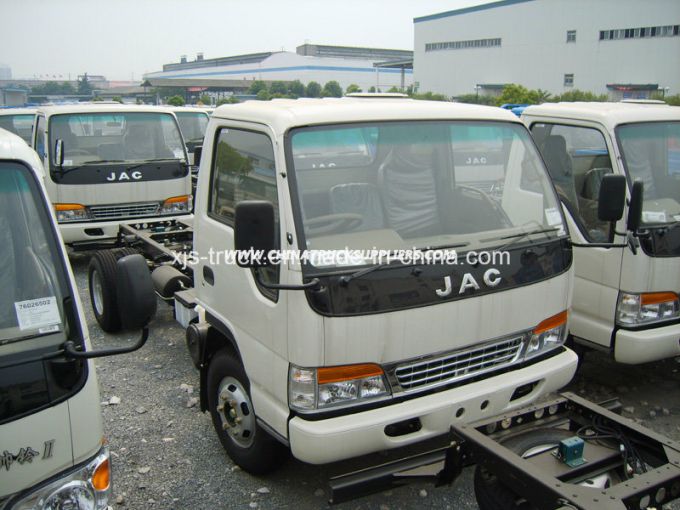

JAC Light CBU Truck Hfc1048k E704 Rhd

1.Original parts2.Good quality3.Quick quotation4.Reasonable price5.Best serviceHFC1048K E704 RIGHT HAND DRIVETruck part,spare part,engine part,part.Light truck engine model:YSD490Q HFC4DA1 HFC4DA1-1 HFC4DA1-2B HFC4DA1-2B1CY4102BQ C4110 CY4102BZQ CY4102BQ CY4102BZLQ CY4102BQ YZ4105QFCA4DF2 YZ4108Q YC4E140-33Light truck transmission model:LG515 LG5-20E30 LG5-20E27 JAC MSB-5M JAC MSB-5N LC5T30 LC5T46 LC5T97LG5-30 QHS5-30 LC6T46 All of them euqipped by JAC light truck:HFC1020 SERIES,HFC1040 SERIES,HFC1045 SERIES,HFC1048 SERIES,HFC1061 SERIES,HFC1063 SERIES,HFC1083 SERIES,HFC3040 SERIES,HFC3041 SERIES,HFC3048 SERIES,HFC3072 SERIES.Heavy truck engine model:WD615.56 260HP YC6M280-20 280HPWD615.50 290HPWD615.31 310HPYC6M320-20 320HPWD615.46 360HPISM380E 20 380HP ISM440E 20 440HPHeavy truck transmission model:CA6T123-85 6J80T 8JS105T 9JS119 12JS160 RT11509F 12JS180 F6J95TB LC6T160 8JS118TC 9JS150T-B All of them euqipped by JAC Heavy duty truck:HFC1131KR1,HFC1251KR1 SERIES,HFC3251KR1 SERIES,HFC3311KR1 SERIES,HFC4251KR1 SERIES,HFC5255GJB SERIES.

Specification
Model	HFC1048K
Serious Number	E704
Cabin	Single Cab
Engine	YZ4108Q
Type	in line-4, diesel
Displacement (cc)	4324
Compression Ratio	17.5
Max Power (HP/rpm)	110/3600
Max Torque (N.m/rpm)	280/2000
Transmission	LC5T30
Speed Ratio	4.776,2.496, 1.429,1, 0.728,R4.774
Gear Position	R 2 4 1 3 5
Final gear ratio	Q13QZ-6.83
Brake system	air brake
Tyre	7.50-16
Overall Dimensions(mm(L*W*H)	5910*2096*2250
Cargo Dimensions(mm)(L*W*H)	4130*1960*400
Tread (front / rear )(mm)(/)	1665/1525
Wheelbase(mm)	3308
Curb Weight (kg)	2680
Max Load Capacity(kg)	3500
Gross Vehicle Weight(kg)	6365
Min Turing Radius(m)	7.5
Min Ground Clearance(mm)	211
Max Speed(km/h)	95
Seating Capacity	3
Max Gradeability(%)	32
frame Section Size(mm)	190*65*6
Configuration
Air Conditioner
Power Steering	√
Pre-heater
Wind deflector
Sidebumper	√
Rear bumper	√
Power Assist of the clutch
Reverse Annunciator	×
Digital Radio
Exhaust Braking	√
New model cabin 808
Else
