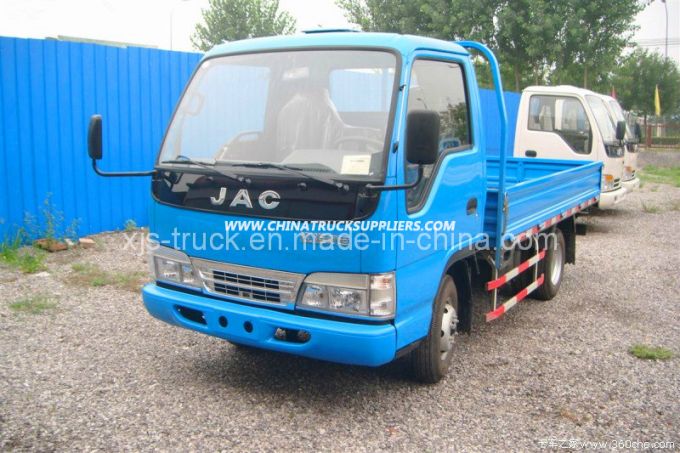

JAC Light Trcuk /Cargo Truck Hfc1040k (D822/D823)

1. Original parts
2. Good quality
3. Quick quotation
4. Reasonable price.

JAC
Truck part, light truck, tipper truck, Cargo truck, CBU truck, Van truck, Refrigerator truck,
Freezer truck, Dump Truck, JAC truck, JAC, truck. Lorry.

JAC TRUCK TIPPER DUMP DUMPER SEMI-DUMP SEMI-TIPPER ConSTRUCTION TRUCK
15CBM 18CBM 20CBM 32CBM 42CBM

Model	HFC1040K2	Curb Weight (kg)	2610
Serious Number for produce	D822/D823	Max Load Capacity(kg)	3000
Cabin	Single/King Cab	Gross Vehicle Weight(kg)	5740
Engine	HFC4DA1-1A	Min Turing Radius(m)	7
Type	in line-4, ind-cooler turbocharged, diesel	Min Ground Clearance(mm)	190
Displacement (cc)	2771	Max Speed(km/h)	100
Compression Ratio	17	Seating Capacity	2
Max Power (HP/rpm)	80KW/3600	Max Gradeability(%)	30
Max Torque (N. m/rpm)	220/2100-2300	frame Section Size(mm)	170*70*5
Transmission	JAC MSB-5M	Configuration
Speed Ratio	5.529, 2.782, 1.641, 1, 0.785, R, 5.271	Air Conditioner	ο
Gear Position	1 3 5 2 4 R	Power Steering	ο
Final gear ratio	D800-6.142	Pre-heater	√
Brake system	hydraulic brake	Sidebumper	ο
ο Tyre	7.00R16	Rear bumper	ο
Overall Size(mm)(L*W*H)	5995*1900*2250	Wind deflector	ο
Rear body size(mm)(L*W*H)	4230/3900*1790*400	Digital Radio	√
Tread (front / rear)(mm)	1440/1425	Exhaust Braking	√
Wheelbase(mm)	3360	New model cabin	√
