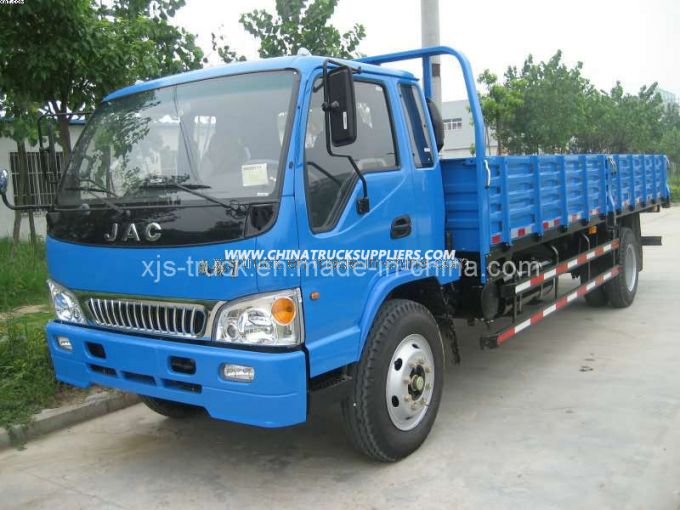

JAC Light Truck / Cargo Truck Hfc1045k2/R1 B802/803

1. Original parts
2. Good quality
3. Quick quotation
4. Reasonable price

JAC
Truck part, light truck, Cargo truck, tipper truck, CBU truck, Van truck, Refrigerator truck,Freezer truck, Dump Truck, JAC truck, JAC, truck. Lorry

Model	HFC1045K2/R1	Curb Weight (kg)	2540
Serious Number for produce	B802/803	Max Load Capacity(kg)	3000
Cabin	Single/King Cab	Gross Vehicle Weight(kg)	5735
Engine	HFC4DA1-1	Min Turing Radius(m)	14
Type	in line-4, ind-cooler turbocharged, diesel	Min Ground Clearance(mm)	185
Displacement (cc)	2771	Max Speed(km/h)	95
Compression Ratio	17.5	Seating Capacity	3
Max Power (HP/rpm)	92/3600	Max Gradeability(%)	30
Max Torque (N. m/rpm)	202/2100-2300	frame Section Size(mm)	170*70*5
Transmission	JAC MSB-5N	Configuration
Speed Ratio	5.529 2.782, 1.641, 1, 0.785, R, 5.271	Air Conditioner	ο
Gear Position	1 3 5 2 4 R	Power Steering	ο
Final gear ratio	B1DAB0-5.571	Pre-heater	ο
Brake system	hydraulic brake	Sidebumper	ο
Tyre	6.50R16/6.50-16	Rear bumper	ο
Overall Size(mm) (L*W*H)	5980*1998*2220	Wind deflector	ο
Rear body size(mm)(L*W*H)	4180/3850*1900*400	Digital Radio	ο
Tread (front / rear )(mm)	1580/1395	Exhaust Braking	ο
Wheelbase(mm)	3308	New model cabin	√
