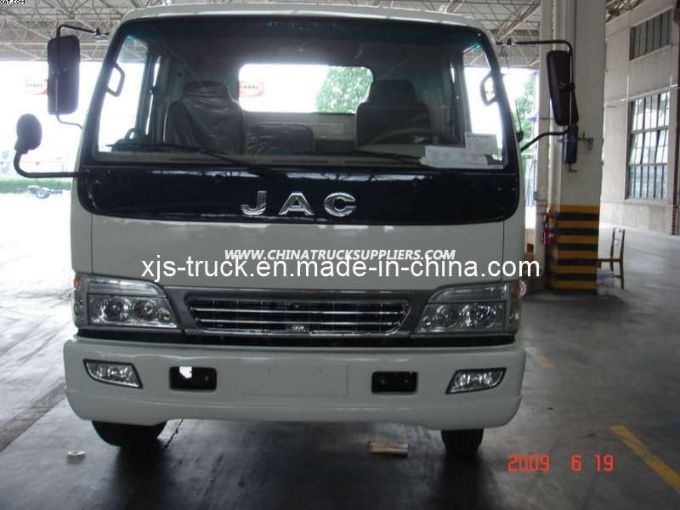

JAC Light Truck /Cargo Truck (HFC1020K/KR D870/D871)

JAC 4*2 Truck
Engine: YSD490Q
Best chassis of China

1. Original parts
2. Good quality
3. Quick quotation
4. Reasonable price

JAC
Truck part, light truck, Cargo truck, tipper truck, CBU truck, Van truck, Refrigerator truck,
Freezer truck, Dump Truck, JAC truck, JAC, truck. Lorry.

JAC TRUCK TIPPER DUMP DUMPER SEMI-DUMP SEMI-TIPPER ConSTRUCTION TRUCK
15CBM 18CBM 20CBM 32CBM 42CBM

Model	HFC1020K/KR1
Serious Number for produce	D870/D871
Cabin	Single/King Cab
Engine	HFC4DA1
Type	in line-4, diesel
Displacement(cc)	2771
Compression Ratio	17
Max Power (HP/rpm)	77/3600
Max Torque (N. m/rpm)	174/2100-2300
Transmission	JAC MSB-5M
Speed Ratio	5.529, 2.782, 1.641, 1, 0.785, R, 5.271
Gear Position	1 3 5 2 4 R
Final gear ratio	D870-6.142
Brake system	hydraulic brake
Tyre	6.50-16
Overall Size(mm)(L*W*H)	5748*1868*2170
Rear body size(mm)(L*W*H)	3580/3250*1770*370
Tread (front / rear)(mm)	1440/1395
Wheelbase(mm)	2800
Curb Weight (kg)	1800
Max Load Capacity(kg)	1700
Gross Vehicle Weight(kg)	3630
Min Turing Radius(m)	6
Min Ground Clearance(mm)	185
Max Speed(km/h)	90
Seating Capacity	2
Max Gradeability(%)	30
frame Section Size(mm)	170*70*5
Configuration
Power Steering	ο
Pre-heater	ο
Wind deflector	ο
Sidebumper	ο
Rear bumper	√
Digital Radio	ο
Exhaust Braking	√
