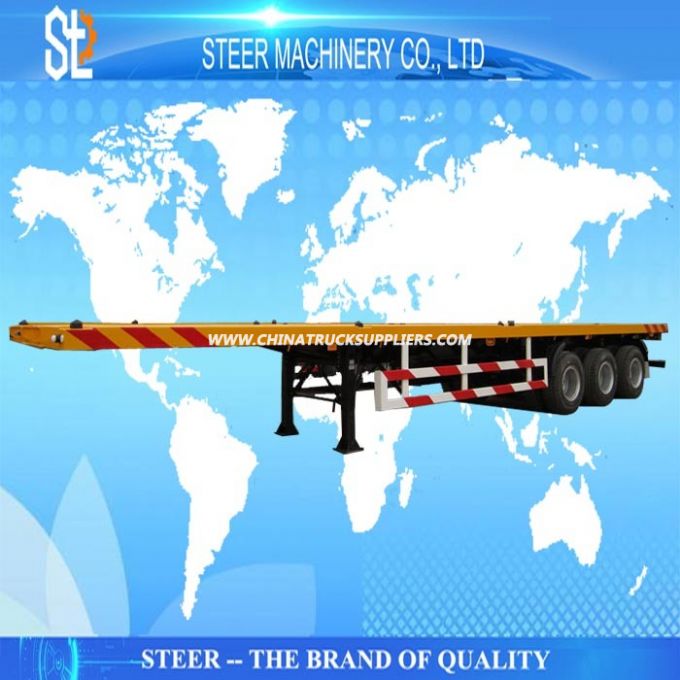

40 Feet Container Trailer Flatbed Trailer Container Chassis

40 feet container trailer flatbed trailer container chassis


Basic info

payload	40 T
Size	12500mm*2500mm*1500mm
Main beam	automatic welding with Q235 Bsteel ,thickness of 14/16/8 mm for the main beam
Side beam	channel steel
Cross member	Q235 B
Floor	3mm checked steel
Side wall	available
Front board	optional
Axle	Fuwa or BPW optional. 13 ton *3 pcs
Suspension	Mechanical suspension
Leaf spring	ten pcs heavy duty suspension
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5
Landing gear	28 ton landing gear or JOST brand
Braking system	WABCO braking valve and 40 Lair tanker
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description

Lock stitch of the side door and the rear door is different according to the customers requirement , there are container type, the normal type, embedded type the save the sea cost. Whichever is strong enough for the transportation safety .
Rear fence is made by strong carbon steel for the trailer safety.

Two types of landing gear are optional , double speed and single speed. Loading capacity of the landing gear are 28 ton, static load of 80 per sets. The advantage of the double speed is more convenient for the users to rise the trailers with just ones rising. The single speed is designed for the parking which is not flat .



Reference drawing
