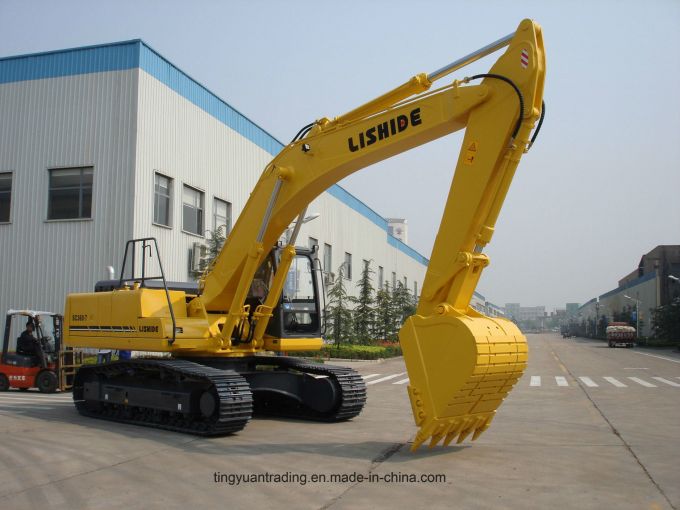

China 23t New Excavator with 180HP

Product description:

Performance
Model	ME220.8
Dimension(L×W×H)(mm)	9740*2980*3190mm
Gross Vehicle weight	23600kg
Maximum excavating height	9310mm
Max.Digging depth	6875mm
Minimum rotary radius	3975mm
Dump clearance	6440mm
Maximum digging reach	10170mm
Dipper capacity	1m³
Maximum breakout force	159kn
Grade ability	70(°)
Engine	Model	GUMMINS B5.9-C
Volume of fuel tank	350L
Rated power	133/2000(kw/r/min)
Maximum speed	5.3/3.5KM/h
Track gauge	2380mm
Minimum Ground clearance	442mm
(mm) Tail rotary radiusl(mm)	2810
Track width(mm)	2380
Rotary table width(mm)	2700
Track shoe width(mm)	2980
Counterweight height(mm)	2120
Bucket rod length(mm)	3050
Length of swing arm(mm)	5850
Ground Pressure(MPa)	48.6
Operating Pressure(MPa)	34.3
Hydraulic Fuel tank capacity	246L
Hydraulic pump model	K3V112DT

Company profile
SHANDONG TINGYUAN TRADINGCO.,LTD isone of the largestcompaniesinexporting heavy trucks and construction machineryin China.We are agent of China National Heavy Duty Truck Group Co., Ltd(SINOTRUK),as well asChina's well-known engineering machinery products including various Dump Trucks, truck tractors, semi-trailers, Cargo trucks, concrete mixer tucks, bulk cement tankers, water tankers, fuel tankers, Fire Fighting Trucks, buses, pick-ups, construction machinery and their spare parts.The company is supported by China National Heavy Duty Truck Group and some other partners, resorting wide overseas marketing network and high-quality technical service, timely supply of spare parts, excellent customer relationship as well as professional international trade team, we achieved impressive performance in vehicle exporting and after-sale field.


Welcome to visit our factory anytime!
