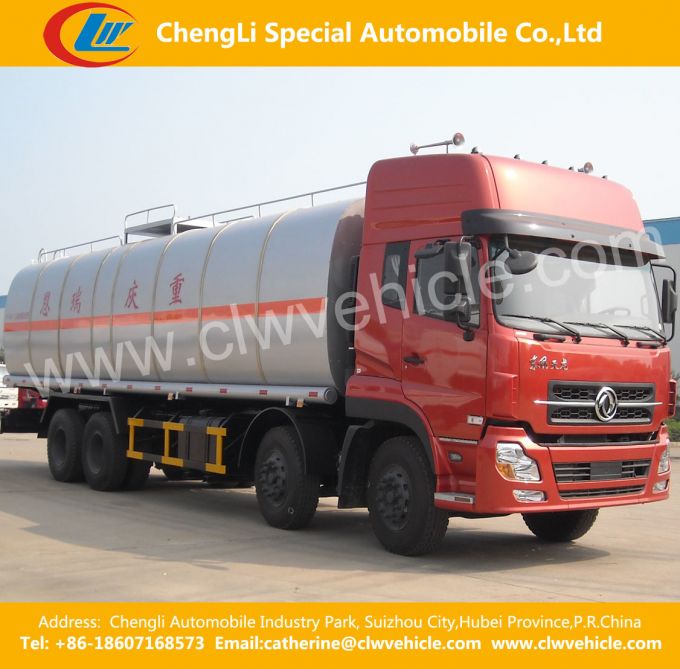

8X4 Dongfeng25.4-27.6 Ton Asphalt Distributor Truck

8x4 Dongfeng25.4-27.6 Ton IntelligentizedAsphalt Distributor Truck

Synchronous Chipsealer/Road Construction Equipment/Asphalt macadam/Roading maintance truck/ automatic asphalt distribution truck developed by our company covering SINOTRUK, DFAC, ISUZU, FAW, FOTON, JAC, JMC brand, is mainly used for road paving. The asphalt and gravel distributor truck consists of asphalt tank, gravel tank, hydraulic system, heating system, cleaning system, control system and lifting mechanism, etc. The chip sealer is a kind of hi-tech road construction equipment at the international level. Compare with its counterparts, our chip sealers are of high automation, even spray, easy operation, large loading capacity and great efficiency.

Technical features:
1. Synchronous chip sealer adopts famous brand chassis with reliable quality.
2. Asphalt tank adopts the heat preservation material of silicon acid aluminum and with good performance of heat preservation.
3. Asphalt tank can spray with certain quantity by fixed spray pipe or spray by hand spray gun. Asphalt pump is installed outside for convenience or for operations.
4. Pipeline cleaning adopts heat conducting oil and can be cleaned with high pressure air. The nozzles are not easily jammed.
5. The structure of chipping spread part is compact. It is comfortable for driving and convenient for use.

Our advantage:
Competitive Price and Excellent Quality,
More than 10 years' experience as a manufacturer
CCC, ISO, BV certification
Perfect after-sale service
Customized products available with us,
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year

8x4 Dongfeng25.4-27.6 Ton Asphalt Distributor Truck
Main parameter		Model No.		CLW		Emission Standard			Euro III
		G.V.W(Kg)		31000		Overall dimension (mm)			11990×2500×3300,3690
		Curb weight(Kg)		13970		Fuel			Diesel
		Axle Load(Kg)		6400/6600/18000		Cabin			2 or 3 passengers allowed)
Chassis parameter		Chassis model		DFL1311A4		Tire			10.00-20,10.00R20,11.00-20,11.00R20,295/80R22.5
		Approach/departure angle (°)		25 / 10		Front/rear Tread(mm)			1940/1940,2027/2027,2040/2040/1860/1860
		Wheelbase(mm)		1950+4250+1300,1950+4250+1350,1950+4500+1300,1950+4500+1350,1950+4500+1430,1850+,1850+4600+1350		Front/rear suspension (mm)			1460/3030,1460/2980,1460/2780
		Leaf of springs		10/12,4/12		Tire no.			13(including 1spare tire)
Engine		Engine model		ISLe340 30		Manufacturer			Dongfeng Cummins
		Max. Power(Kw)		250		Displacement(ML)			8900
		Max.Speed(km/h)		80		Horsepower(HP)			340
Spray Specification		Tank Capacity(m3 )		22.09		Spray width(m)			4.5-6
		Materials		Q235		Spray Value(L/m3)			0.2-3
		Hydraulic pump model		CBQ550-L(Yuci)		Asphalt pump			QGB950
		Burner		G20 ( Itally Riello )		Controller			CLW-48-01(Germany Siemens)Computer-controlled
		Nozzle		48 Intelligent asphalt spray		Generator(Kw)			5.5

Any further inquires, feel free to contact me throught below info!
Chengli Special Automobile Co., Ltd
Factory Add:ChengliAutomobileIndustryPark,SuizhouCity,
HubeiProvince,P.R.China
Export:Room3102,Block7,FanhaiInternationalSOHOTown,
JianghanDistrict,Wuhan,HubeiProvince,China
Catherine YEE
/Mob:(+86) 18607168573

1. Factory Supply:one of the biggest special purpose truck manufacturers in china,more than 300 kinds of special truck for your choice.

2. OEM Ability: according to your demand, material, dimensions, surface color and the logo are optional for you.

3. Good Quality: with ISO CCC BV certification Solid technology, advanced equipments; reliant quality and flexible modes of operation also have strict quality control system,passed the ISO9001-2008 and the 3C (China Compulsory Certification),our brand is china famous brand with good reputation in the market.

4. Best Service: 24-hour hotline and email during communication.

5. Fast Delivery: 5-10 days after payment(most common products), safe and quick delivery.

Packaging:nude with wax.

Shipping:Ro-Ro/Bulk Ship/Container
