Construction Machine 56m Electric Concrete Pump Hb56

construction machine 56m electric concrete pump HB56

Contact way:
Sales Manager
Alisa Wang

Newindu E-Commerce (Shanghai) Co.,Ltd.
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Tel: +86-21-62770109Fax: +86-21-62120109
Mobile :+86-18616224775

Product description:
construction machine 56m electric concrete pump HB56

Travel
Category	Item	Unit	Parameter
Chassis	Model		FM440
	Manufacturer		VOLVO
	Max. speed	km/h	90
	Max. gradeability		38%
	Min. turning diameter	m	27.4
	Brake distance	m	≤10
	Wheelbase	mm	1995+5205+1370+1450
	Tread (front/rear)	mm	2028/1872
	Approach angle/departure angle	.	18/11
	Min. clearance	mm	270
	Tyre specification		12.00R20
Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GB
Others	Dimension (Length×Width×Height)	mm	14885×2500×3990
	Total vehicle weight	kg	49750
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m3/h	100/163
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8
	Theoretical pumping times(high pressure/low pressure)	/min	13/21
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1530
Placing boom	Pumping slump range		12-23
	Reach height		55.7
	Reach depth		44
	Slewing radius		51.7
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger span	Overall outrigger span	11250±50
		Front outrigger transverse span	11400±50
		Rear outrigger transverse span	11300±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		700
	Max. pressure of water pump		2

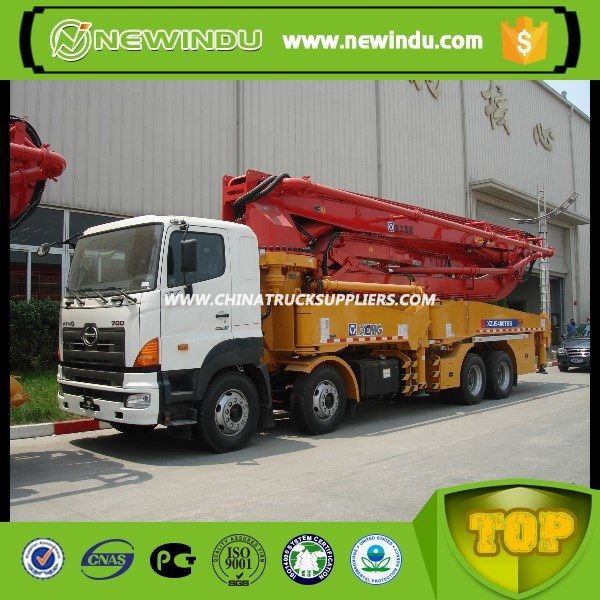

Product image:
