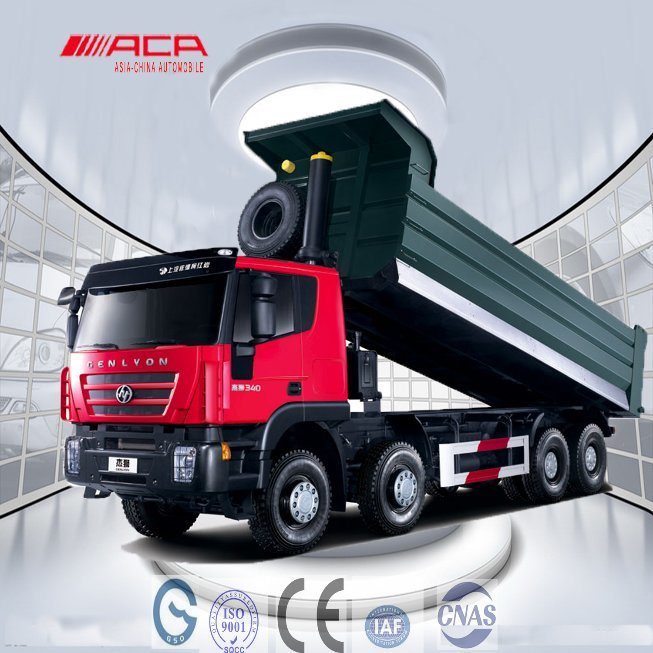

Saic-Iveco Hongyan Genlyon 380HP Heavy Duty Tipper

1. Saic-Iveco Hongyan Genlyon Dump Truck;

2. Adopt Italian advanced techonology;
3. Flexible sales system, competitive price;
4. Excellent quality, good after services and mature spare parts system.

Pls don't hesitate to send your inquiry!

NO.	SPECIFICATION	PARAMETER			NOTE
1	Model	CQ3314HTG306
2	Cab	Genlyon Flat-roof Cab, Left Hand Drive, with AC			Yellow/red/white
3	Drive	8×4
4	Rated Payload(kg)	15,950
5	Kerb Weight(kg)	14,920
6	Gross Vehicle Weight(kg)	31,000
7	Overall Dimension(mm)	9,375×2,500×3,350(L*W*H)
8	Dump Box Dimension(mm)	6,500×2,300×1,200(L*W*H)
9	Dump Box Volume (m 3 )	18
10	Thickness of Track Bed	Bottom 8mm,side 6mm
11	Lifting Cylinder	HYVA172			Front lift
12	Max Speed(km/h)	85
13	Wheelbase(mm)	1,800+3,000+1,350
14	Engine	Cursor9			Euro III
15	Engine Output(HP)	380
16	Gearbox	12JSD180T			Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	frame	outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 6,500 kg×2
20	Driving axle	Full floating, double reduction with differential Steyr cast steel driving axle, Capacity:18,000 kg
21	Tyre	12.00R20
22	Oil Tank	400L			Aluminum
