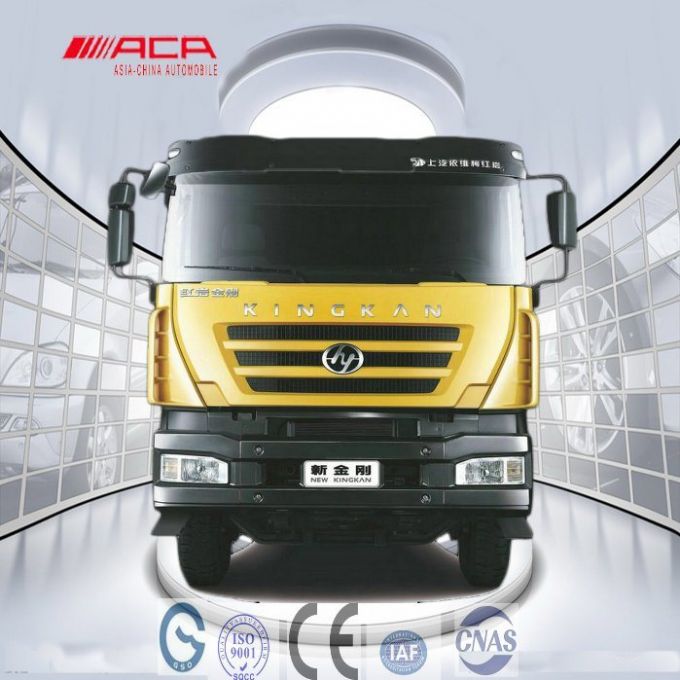

6X4 New Kingkan Tipper (WP10.290)

6X4 Saic-Iveco hongyan new kingkan Dump Truck:


1. Adopt Italian advanced techonology;
2. Flexible sales system, competitive price;
3. Excellent quality, best after-sale services and mature spare parts system.

If you are interested in this model, please feel free to send your inquiry, and we will always be glad to quote.

TECHNICAL SPECIFICATION
NO.	SPECIFICATION	PARAMETER			NOTE
1	Model	CQ3254HMG324
2	Cab	New KINGKAN short cab, Left-Hand drive, with AC			Yellow/Red/White
3	Drive	6×4
4	Rated Payload(kg)	12920
5	Kerb Weight(kg)	11950
6	Gross Vehicle Weight(kg)	25000
7	Overall Dimension(mm)	7435×2500×3510(L×W×H)
8	Dump Box Dimension(mm)	4800×2300×1300(L×W×H)
9	Dump Box Volume (m 3 )	14
10	Thickness of Dump Box	Bottom 8mm,side 6mm
11	Lifting Cylinder	Mid-lift Φ220
12	Max Speed(km/h)	94
13	Wheelbase(mm)	3175+1400
14	Engine	WP10.290			Euro III
15	Engine Output(HP)	290 HP
16	Gearbox	10JSD120			Fuller technology
17	Steering gear	Germany Technology ZF steering gear
18	frame	Outside width 865mm, longeron cross section 317x(8+8)mm
19	Front Axle	Iron Cast I-Shaped Axle, Capacity: 7000 kg
20	Driving axle	Full floating, double reduction with differential cast steel driving axle, Capacity:18000 kg
21	Tyre	12.00R20
22	Oil Tank	350L Aluminum-Magnesium Alloy
