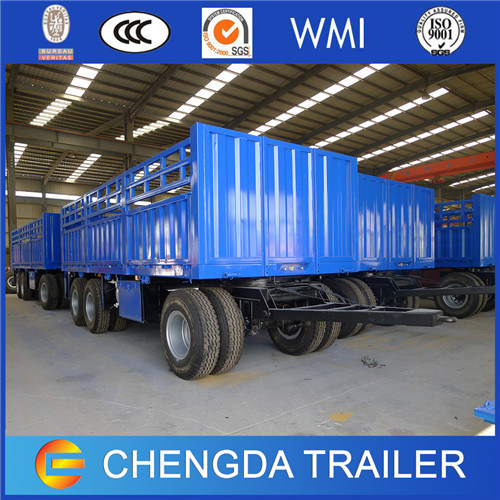

Tri Axle Utility Full Trailer Cargo Trailer for Hot Sale

Specs:Tri Axle Utility Full Trailer Cargo Trailer for Hot Sale

Type	Tri Axle Utility Full Trailer Cargo Trailer for Hot Sale
Loading capacity kg	40000 kg
Dimensions(L*W*H) mm	7500*2500*3400 (side wall detached)
Main Beam	Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Aac processes. Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,width 140mm
Thickness	Platform 4mm, side wall 4mm
Axle number	Three axles
Axle weight load	13Ton
Axle brand	BPW brand axle
Tire type	1200R2012pcsLinglong brand
ABS	With ABS system
Spare fuel tanker	500L

Tri Axle Utility Full Trailer Cargo Trailer for Hot Sale





1)Floor:
3mm diamond plate with wood

2)Axle
Four Units German or American type 13T 10 Hole axle, Brand: BPW/FUWA/FUHE/L1/HJ

3)Suspension
A couple of American or German Type mechanical 4-axle suspension.

4)Leaf Spring
Four sets of reliable local brand, 8-piece leaf spring, 16X90mm ,or German type 13 pcs, 100*11mm

5) King Pin
One unit of 2Inch standard welded kingpin.

6) Landing Gear
Two-speed, manually operating, heavy duty FUWA or JOST Brand landing leg

7)Wheel Rim
16 units of 8.25*22.5 rim

8)Tyre
16 units of 11R22.5 Tubeless tyre

9)Twist Lock
W/O

10)Spare Wheel Carrier
One set of spare wheel carrier including ariser.

11)Pneumatic Braking System
Three unit of WABCO RE 6relay valve;Four units of T30/30 spring brake chamber; Four units of T30 brake chamber, Two unit of reliable local brand 40L air tank; Two units of reliable local brand standard coppery air-connector.

12)Electrical System
One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light &reflector, side lamp etc.
One set of DAFA(brand )6-pin standard Cable.

13)Painting Sand blasting processing clean rust
1. Coat of anticorrosive primer
2. Coats of finish urethane paint
3. Color as customer choice

14)Accessory
One tooling box with whole set of standard trailer tool

For the specification requirement we reserve the right to make any changes without notice.
(special requirement,special design)
Tri Axle Utility Full Trailer Cargo Trailer for Hot Sale

Packing way: there are two kinds of packing way.
By bulk shipping for full trailer which can keep trailer completely
By 40ft HQ container which can save much sea freight for customer.
We can manufactuer different semi trailers according to your demands,
1 low bed semi trailer
2 flatbed semi trailer
3 fuel tanker semi trailer
4 bulk cement semi trailer
5 cargo semi trailer
6 tipper semi trailer
7 van semi trailer
8 SINOTRUK HOWO tractor head
9 SINOTRUK HOWO Dump Truck
10 SINOTRUK HOWO mixer truck
