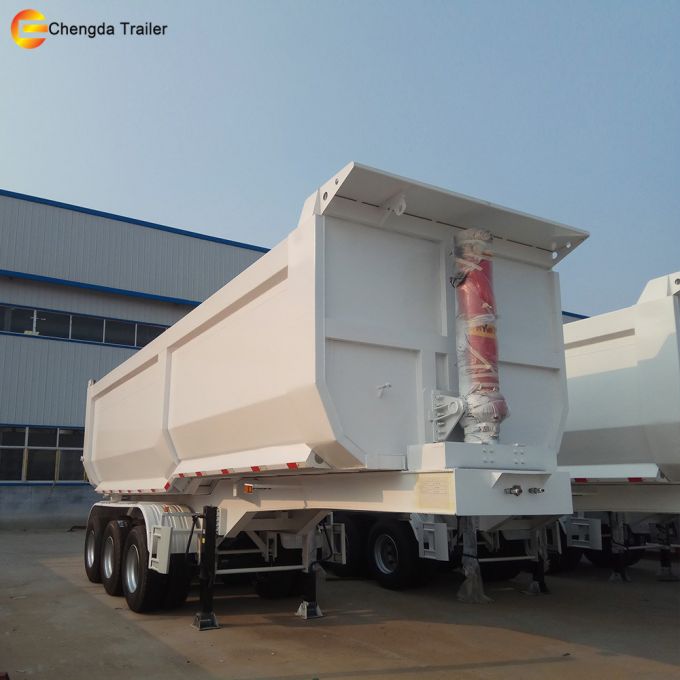

3 Axle 40 Ton Hydraulic End Tipper Dump Trailer

Chinese Ushape 40 ton hydraulic dump trailer

Trailer Model	3 Axle40T Tipper Semi Trailer
Model Number	SCD9402Z
Overall Dimension (Lx Wx H)(mm)	11200mmX2550mmX3500mm
Inner Dimension	10000mmX2330mmX1780mm
Wheelbase(mm)	6100+1320+1320mm
Axle	FUWA 13TON Axle
Axle Number	Three
Lifting	HYVA hydraulic lifting system, model:FC214-5-09030, lifting weight:55-90Tons, Maxim Lifting Weight 90Tons, PTO with oil tank and hydrauic system
Track	1840/1840/1840
Suspension system	Mechanical suspension, Three axis series balanced steel plate spring suspension
Suspend Size(mm)	1760
Steel Spring	10/10/10 leaf spring suspension
Curb Weight(kg)	12000
Max Total Weight(kg)	100000
Loading Weight(kg)	80000
Thickness	bottom:8mm, side:6mm
Traction Pin	JOST Brand Φ90MM or 50MM
Tire Type and quantity	12 00R2012units triangle Brand
Front Fitting Radius (mm)	1760
Landing Gear	JOST brand 28ton
Brake air chamber	Two double and two single chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer's requirement
Packing	Nude, Polish with wax before shipping
Delivery way	Transfer to Tianjin Port, and carry by ro-ro ship, the freight cost depends on the volume.

Packaging &Shipping :
Naked, waxing, shipped by bulk carrier, by container or by ro-ro, according to the size.
Transportation ====100% Convenience, Efficient !


Our Certification :
Certificate of the World Manufacturer :WMI
Product Quality Certification :CCC &ISO &BV


about us :
Since Established in 2005, Shandong Yuncheng Chengda Trailer Manufacturer Co.,Ltd is the professional manufacturers, we integrating production, scientific research&development and sales.
Involving in Low bed semi-trailers, Fuel tank trailers, Container trailers, Side wall semi-trailer, Stake semi-trailer, Dump semi-trailer, Van semi-trailer, Powder tank semi-trailer, car-carrier semi-trailer and trailer parts, with 50 million dollars and revenue almost 600 million RMB, we are aleading provider in this industry.
Wehave CCC certification and BV, ISO, WMI certification.
