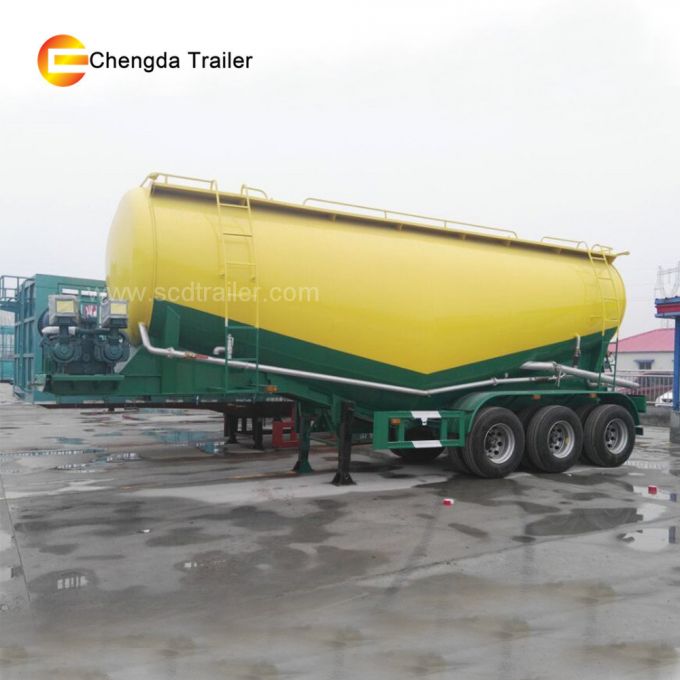

28cbm 40ton 3 Axles Bulk Cement Tanker Tanker Trailer

Trailer Model

Overall Dimension(Lx WxH)(mm)

12000×2500×3700

Payload

45 ton

Volume

70CBM

Axle Brand

Standard 13 ton

Axle Number

3

Wheelbase(mm)

8000+1310+1310

Suspension system

Common Mechanical suspension

Steel Spring

-/16/16/16leaf spring suspension

The material ofmain beam

The height of the beam is 500 mm,

upper plate is16mm,

down plate is18mm,

middle plate is 10mm.

Tank thickness

4 mm

Channel beam

4mm

Tire Type and quantity

12R22.512pieces

Traction Pin

90mm

Spare Wheel Bracket

2 pieces

Ladder

Yes

Tool Box

1standard

access door

2 sets

The diesel engine

Standardextraposition4102

Steel rim

12 pieces

Landing Gear

Standard single28ton

Tank

Single

air compressor

Standard 12CBM

Brake system

Dual Line braking system ,

Brake block

3 pieces ,dilated

Brake air chamber

Sixdoubleairchamber

Electrical system

1. Voltage: 24v2. Receptacle:

7 ways (7 wire harness)

Tail lamp with turn signal,

brake light &reflector,

side lamp etc.

One set 6-core standard Cable.

Side Guard

According to customer's requirement

Painting

Color by customer's requirement

Packing

Polish with wax before shipping

Usage

Is mainly used fortransportingdrybulk cargo,

suck as cement, flour, grain,

Flexible,convenient operation, working efficiency,

large volume,

make full use of space and the advantages
