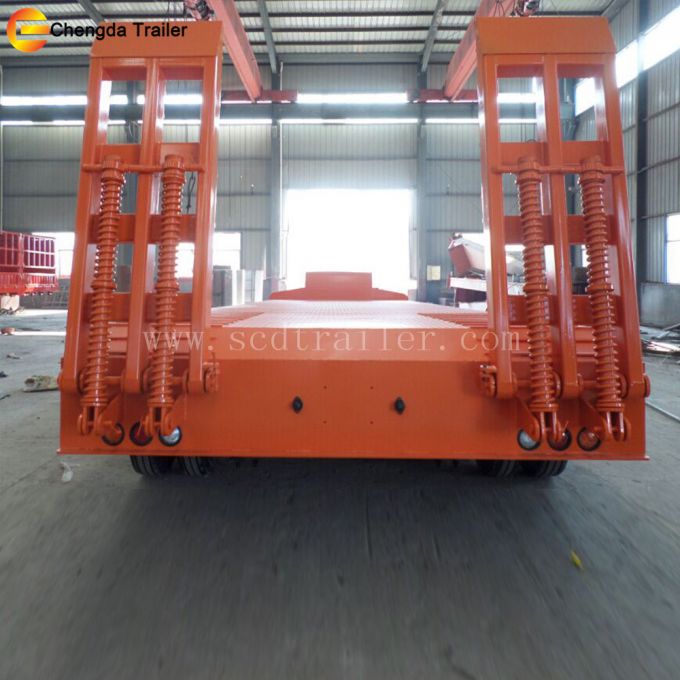

4 Axles 120 Ton Low Bed Trailer

specification for low bed semi trailer

Trailer Model	4 Axles120t Low Bed Semi Trailer
Function	Tractor andexcavatortransportation
Overall Dimension (L*W *H)(mm)	13000*3000*1700
Tare Weight(KG)	6500
LoadingCapacity(KG)	60000
Axle Brand	BPW Axle
AxleNumber	4
SuspensionSystem	Standard Mechanical suspension
Steel Spring	10/10/10 leaf spring suspension
MainBeam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm.
Floor	4mm
Tire Type andQuantity	11.00R20 16units
Traction Pin	50# or90#, removeable
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	Standard 28Ton, external
BrakingSystem	Dual Line braking system(none ABS)
Brake air chamber	Six big double air chamber
ElectricalSystem	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Details for low bed semi trailer

Chengda trailer manufacturing

1.Locally owned leader manufacturer of various kinds of trailers over 11 years, 99% returned foreign clients

2.Certifications:BVISO CCCWMI

3.OEM/ODMservice.Tellusyouridea,ourR&dteamwill try best to meet your demands.

4.Weaccept100%inspection,andwelcometoourfactoryatanytime.
5.others: for tax
FORM E FOR PHILIPPINES
PVOC FOR KENYA

Certification for low bed semi trailer
