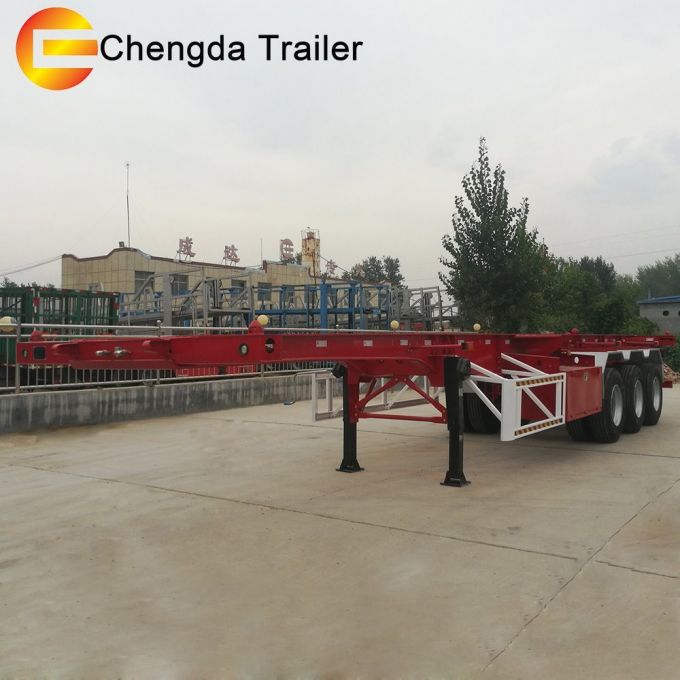

Utility 20FT 40FT Skeleton Container Chassis Semi Trailer

Trailer Model

container flatbed trucks trailer 3axle, tractor trailer wheel rims

Function

1x40ft container or 2x20ft container. Or carry other stuff.

Overall Dimension

12500*2500*1550mm

Payload

40000kg

Total Weight

50000kg

Specification:

Axle Brand

FUWA Brand 13TON Axle, Optional BPW

Axle number

three

Wheelbase(mm)

6260+1310+1310

Suspensionsystem

MechanicalSuspension

Steel Spring

10/10/10 leaf spring suspension

Container Twist Locks

12pieces

Traction Pin

90mm/50mm

Tire specs.

12R22.512units

Number of Tire

13 pieces

SpareWheel Bracket

2 piece

frame:(specs. And materials)

Main beam height is 500mm

frame Beam

Upper plate is 14mm,downplate is 16mm,middleplateis 8mm.

Platform bed

3mmdiamond steel plate

LandingGear

Chinese brand28ton

Brake system

Dual Line braking system ,optional ABS.

Brake Chamber

Four double and two single chamber, optional WABCO

Electricalsystem:

Cable

One set 6-core standard Cable.

Voltage

24V

Receptacle

7 ways(7 wire harness)

Light:

Tail lamp with turn signal, brake light &reflector, side lamp etc.
