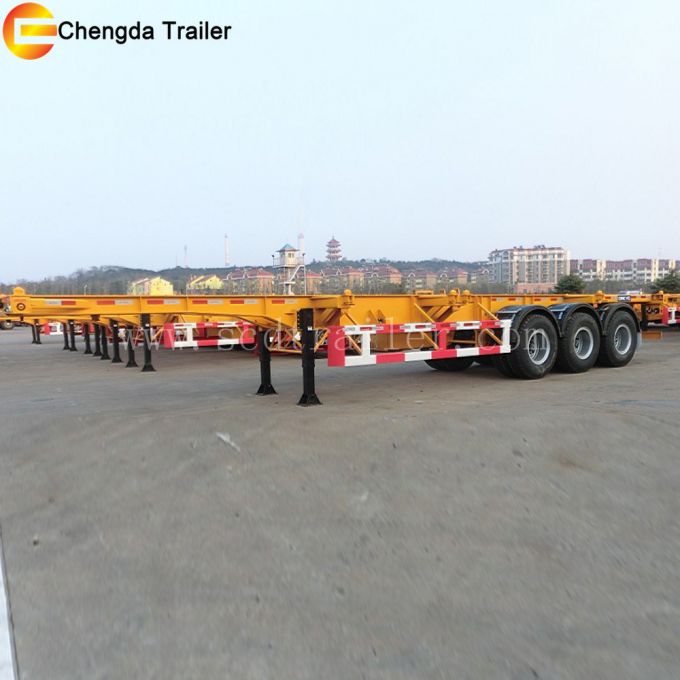

Skeletal Semi Trailer, Container Transportation Skeleton Trailer

Skeletal Semi Trailer, Container Transportation Skeleton Trailer


Technical parameters:

Type	Skeletal Semi Trailer
Function	2x 20ft and 1x40ft container or other stuff
Loading capacity kg	40000
Tare weight kg	5500
Dimensions(L*W*H) mm	12500*2500*1600
Traction Pin	2" or 3.5"
Main Beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8mm.
Side Beam	Q235 16# channel steel
Platform plate	3mm Diamond plate
Axle number	3
Axle weight load	13Ton
Axle brand	FUWA
Tire type	12R22.5 12units
Rim	9.00-22.5
Container twist locker	12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Landing Gear	28Ton standard Chinese brand,double speeds,JOST brand optional
Suspension	Mechanical Leaf Spring Suspension,Air suspension optional
Leaf spring	90(W)mm*13(Thick)mm*10 Layer
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber; 40L air tanks Dual Line braking system, none ABS
Brake air chamber	Four double chamber, Two single chamber
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Electrical	1. Voltage: 24v 2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Side marker lamp	LED type
Deliverytime	15 workdays after confirming order and receiving your deposit
Packing	Complete Chassis sand blasting to clean rust, 1coat of anti-rust prime,2 coats of final paint
Painting	optional
Delivery way	Transfer to Qingdao/Tianjin Port, and carry by ro-ro ship or bulk cargo ship, the freight cost depends on the volume.

Company Information:

1. Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005, is one of the qualified manufacturers of various trailers, like flatbed container semi trailer, low bed semi trailer, fuel tanker semi trailer, bulk cement semi trailer, side wall and fence cargo trailer, etc.
We are First Class agent of SINOTRUK ans sell all kinds of trucks.

2. Integrated production, scientific research&development and professional sales teams,
all those advantages could provide full service of trailers, semitrailers, tractor
head, Dump Truck, engineering machinery and trailer parts.

3. With high standard machinery and automatic equipment, powerful R&D team and elite
sales team, We have built along business relationship with many world famous firms such
as SINOTRUK, SHACMAN, FAW, etc.

4. In 2014, we enlarged our factory and add more prodution line. The sales valve in this year
increase in aboom way.



Our main products:

Trailers:
Flatbed(skeletal) container semi trailer, low bed semi trailer, tipper dump semi trailer, fuel tank semi trailer(carbon steel, stainless steel and aluminum alloy materials optional), bulk cement tanker semi trailer,cargo semi trailer, side wall semi trailer, fence semi trailer, LPG tank semi trailer, LNG tank semi trailer, car carrier semi trailer and so on.

Trucks:
Tractor truck head, tipping dump truck, Cargo truck, cement mixer truck, Fuel Tanker Truck, water tank truck, crane truck, pickup truck, mini truck, Van truck and so on.

Except for trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane, road roller, paver, bulldozer, excavator etc.

Service:
Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the cargo from our company, it is just anew beginning of our cooperation.
Main Markets: Our company has enjoyed great preference by customers from African, South America, middle east, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
Our company's future vision: become aglobally-famous and long-standing corporation.
Our company's Mission: Share interests and happiness with all partners.

1. One year guarantee for the main parts
2. Chinese government verified manufacturer, with more than 10 years professional experience.
3. Small order accepted
4. Custom-made according to your requirements

Certifications:

ISO, CCC, WMI, etc



FAQ:

1. Are you amanufacturer or trading company?
Manufacturer

2. Can it be custom-made?
Yes sure.

3. Is there discount?
Yes we have promotion and discount is according to order quantity.


Packaging &Shipping:

Nude and wax, shipped in container, bulk or RO-RO ship.
We always use the best packaging solution to decrease transportation cost and give you the very competitive price.

We are waiting for you to get this ideal product and best service
