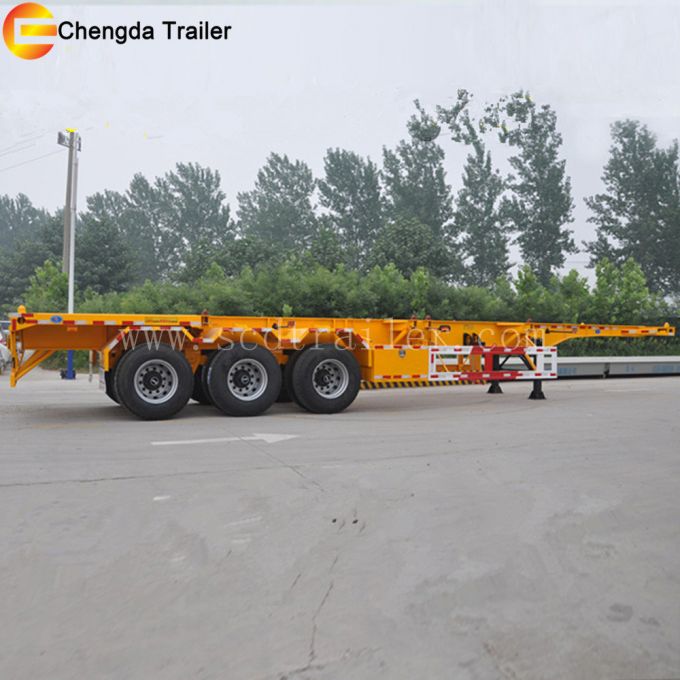

3 Axles 40ft Skeleton Container Semi Trailer

Specification for 3 axles 40ft container semi trailer

Product Specification

Trailer Model	3Axles 40ftcontainer semi trailer
Function	2x 20ft and 1x40ft container or other goods transportation
Tare Weight(KG)	6900
Loading Capacity(KG)	40000
Total Dimensions (L*W*H) mm	12500*2500*1500
Main Beam	The height of the beam is 500 mm,the thickness of upper plate is16mm,down plate is 18mm,middle plate is 10mm
AxleNumber	3
AxleBrand	FUWA 13Ton Axle
Tire Type and Quantity	12.00R22.5 tubeless, 12
Suspension System	Standard Mechanical suspension
SteelSpring	10/10 leaf spring suspension
BrakingSystem	Dual Line braking system (none ABS)
Brake air chamber	Six big double air chamber
Electrical System	1.Voltage:24V 2.Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable
Tool box	1 Standard
Traction pin	50#or 90#, removeable
Landing Gear	Standard28Ton,external
Container Twist Locker	12 Screw type
Spare Wheel Bracket	2 pieces
painting	Optional(yellow,red,white,blue etc.)
Packing	Polish with wax before shipping

Details pics
CERTIFICATIONS

about us:
Founded in 2005, Chengda Trailer Manufacturing is specialized in many kinds of semi trailer, provide high quality products and best service. We're agent of Sinotruk as well,tractor truck,Dump Truck,Oil Tanker Truck is our main products.We welcome customers from all walks of life to visit our facotry and build the cooperative relationship with us.

Chengda , trustworthy!

1. the satisfied product with high level standard;
2. the full aspect service from order to shipping;
3. give customer most suitable advice when customer has special needs for your transportation or construction;
4. help customer to get the related spare parts of trailer or tractors if customer needs.
we are waiting for you to get this ideal products and best service .
5.Feel free to contact us.We guarantee the best quality service.
6.Customer satisfaction is our greatest happiness.


1.Doesyourcompanyisafactoryortradecompany?
Wehaveafactoryourself,weareonthisbusinessforfewyearsinChina.OurfactoryisveryfamousintheShandongChina.

2.Whatsthequalifyassuranceweprovidedandhowdowecontrolquality?
1.Establishedaproceduretocheckproductsatallstagesofthemanufacturingprocess-rawmaterials,processmaterials,validatedortestedmaterialsfinishedgoodsect.Beside,wehavealsodevelopedaprocedurewhichidentifiestheinspectionandteststatusofallitemsatallstagesofthemanufacturingprocess.

2.100%inspectioninassemblylines.Allcontrols,inspections,equipment,fixtures,totalproductionresourcesandskillsareinspectedtoensuretheyconsistentlyachievetherequiredqualitylevels.

3.What'syourMOQ?
Oneunittrailerortruck.

4.Howdoyoutransportthesemitrailersandtrucks?
Wetransportthevehiclebybulkorcontainer.Ourfactorypossesslong-termcooperationwithshipagencywhichcanprovideyoulowestshippingfee.
bulkorcontainer.
5.Canyousatisfymyspecialrequirement?
Definitely!WearedirectmanufacturerandwehavestrongproducingcapacityandR&Dcapacity!
6.Howtocontactus?

Company Name: Shandong Yuncheng Chengda Trailer Manufacturing Co., Ltd.
Address: 1603 Room, Building 3, Jingdu Guoji Building,Shunhedong Street,Shizhong Zone, Jinan City, Shandong Province, P.R.China
Contact:Cathy
TEL: +86-531-69985132
FAX: +86-531-69985133
Mobile: +86-18253112975
