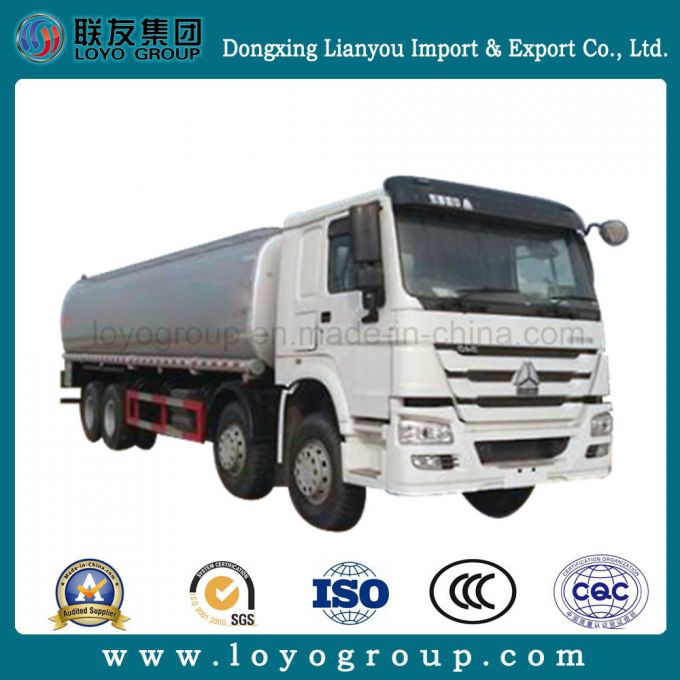

Sinotruk HOWO 8X4 Oil Truck with 25000L Tank

HOWO T5g 8x4 Oil Tanker Truck with 25000L Capacity

Howo T5G 25000L oil truck Fuel tanker tank truck
Driving Type				8x4
Model				ZZ1317N466GC1
Engine	Model			MC07.34-30
	Horsepower			340HP
	Maximum outputKw			248kw
	Maximum torque N.m			1250
	Type			BOSCH high pressure common rail engine,4 stroke direct injection diesel engine 6 cylinder in-line with water cooling, turbo-charging &intercooling
	Displacement			6.87L
	Manufacture:SINOTRUCK (CNHTC) &MAN GROUP, Euro IIIemission standard
Cab	T5G-V,left hand driving ,with air conditioner ,double sleeper,hydraulically tiltable to the front,2-arm windscreen wiper system with 3speeds, laminate windscreen, with casted-in radio aerial, adjustable steering wheel, German VDO instruments, with stereo radio, MP5 player, air horn, electric rearview mirror, 4-point support fully floating suspension and shock absorber cab ,double-locking safety belt.
Clutch	Single- plate dry coil-spring clutch, diameter 430 mm, hydraulically operating with air assistance
Transmission	HW13710 transmission,10 speed forward and 2speed reverse
Front Axle	SINOTRUK VGD060QB new 7-ton front axles of equipped with drum brake.
Steering	German D39 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK 153drive axle
Brake System	Service brake:dual circuit compressed air brake
	Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake
Tyres	Tyres:11.00R20radial tyre with 1spare tyre
Electrics	Operating voltage:24V,negative grounded
	Starter:24 V,7.5Kw
	Batteries:2x12 V,165Ah
	horn,headlamps,fog lights,brake lights,indicators and reverse light
Oil Tank	600L fuel tank
Dimensions	Overall length xwidth xheight 12000x2496x3405(mm)
	Wheel base 1800+5050+1350(mm)
Carbon steel Fuel Tank	Fuel Tank Volume (L):	25000L	tank material:	Carbon steel	Tank internal structure	25000L divided into 5compartments (5000+5000+5000+5000+5000)
	Body material thickness(mm):	5mm	Sealing cap material thickness(mm):	6mm
	Rear Ladder:	1 unit	Tools box:	1 unit	Tank shape	Oval
	With Pump, 5pcs manhole with breathing valve, with bottom sea valve, with seal box With 2pumping hole, can pump in and pump out With operating platform on back
	Equip with 2units fire extinguisher, with 2outlet pipe (length 6meter), with anti-crash rear bumper
Weight (kg)	Kerb weight 13900kg
	Gross vehicle weight 31000kg
Performance	Maximum drving speed (km/h) 110
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.

COMPANY PROFILE






1. OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

2.AFTER SERVICE:
LOYOGROUP PROMISE:We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.

3. FAQ

Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can ihave samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in awhile, and we will help you to book the latest ship.

Q6:What's the delivery time ?

A: The delivery time is within 15-30 working days after receiving your advance payment.

Q7:Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.
