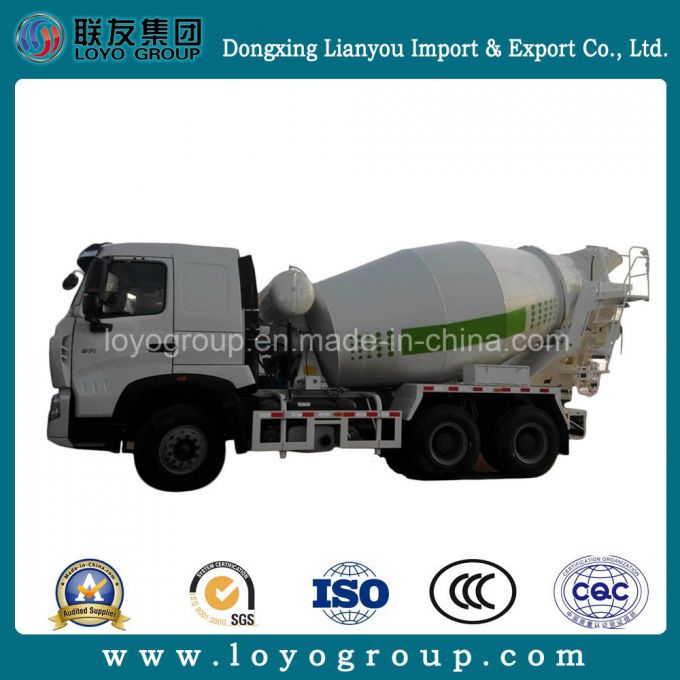

Sinotruk HOWO-A7 Concrete Mixer Truck

Sinotruk HOWO-A7 6X4 Mixer Truck

Drive type		6x4 HOWO A7
Models		ZZ5257GJBN3847N1L
Engine	Model	WD615.69/WD615.47/D10.34
	HorsepowerHp(kw)/rpm	336(247), 371(273),375/2200
	Type	6-cylinder in-line with water cooling; 4-stroke direct injection; turbo-charging and inter-cooling; Engine Capacity 9.726L
	Emission Standard	Euro 3
Transmission	Model	HW19710/HW15710
	Type	Manual
Clutch		φ430mm diaphragm clutch,Spring plate,diaphragm spring
Axle	Front Axle	HF7,HF9
	Rear Axle	HC16, ST16, AC16 (ratio:3.93; 4.8; 5.45; 5.73)
	Axle load (kg)	7000/18000
Steering		ZF8098
Max.Speed(km/h)		95
Approach/Departure (°)		20/13
Tires		11.00-20,12.00-20,12.00R20(18PR),12.00R20(20PR),12.00R20(22PR)
Chassis	Wheel base	3825+1350
	LxWxH (mm)	9335x2496x3800
	Overhang (front/rear)	1540/2620 mm
	Kerb Mass(kg)	13900 kg
	Total Mass (kg)	25000 kg
Cabin		HOWO A7-P
		one berth ,With air-condition,radio and MP3-Player
Electrical system		24V,minus earth,2x12V/165ah storage battery,28V/1540Kw generator
Feul tank		300L Aluminum alloy fuel tank
Brake	Service Brake	With dual-circuit compressed air brake
	Parking Brake	Power spring brake acting on rear wheel
	Auxiliary Brake	Engine exhaust valve brake
Drum specifications	Tank capacity	8/9/10/12 (m³)
	Gradient of the drum	13.5/ 11 /10
	Water tank capacity:400L; Rest rate: 0.5%;Retational speed of the drum:0-16r/min
