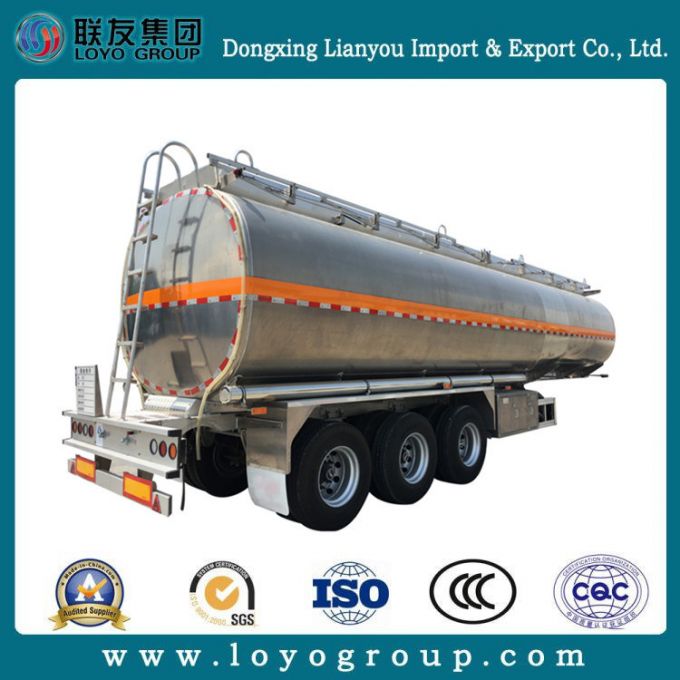

Cimc China Aluminum Fuel Tank Tow Truck

China Aluminum Fuel Tank Trailer With Low Price

Type	China Aluminum Fuel Tank
Overall Dimension	12,500x2,500x3,800mm
Thickness	Material: isAluminum Tank body: 4mm End plate: 4mm Wave-proof plate: 2mm
Volume	38m³
Axle	Fuwa brand,3*13ton
Compartments	1 compartments
Manhole cover	2 sets with2 breath valves
Discharge Valve	2 Sets, 3inch.
Discharge pipe	4 inch seamless steel tube
Suspension	CIMC Standard Suspension
Emergency valve	4 inch bottom valve, 1set
Steel Spring	10/10/10
Tire	Tri-angle brand, 12R22.5, 12 pcs
Rim	8.0, 12 pcs
King pin	90mm or 50mm
Landing Gear	CIMC Standard 28T
Brake system	2 line pneumatic brake system. Type 30/30 spring brake system on two axles. ISO type air coupling at front of the semi-trailer. Without ABS.
Brake chamber	4 Double, 2Single
Electrical system	Chinese standard 24V; 7ways receptacle; LED lamps
Side Guard	Side protection guards on both sides.
Spare Tire Bracket	2 pcs
Colour and Marking	Comply with the customer's requirement
