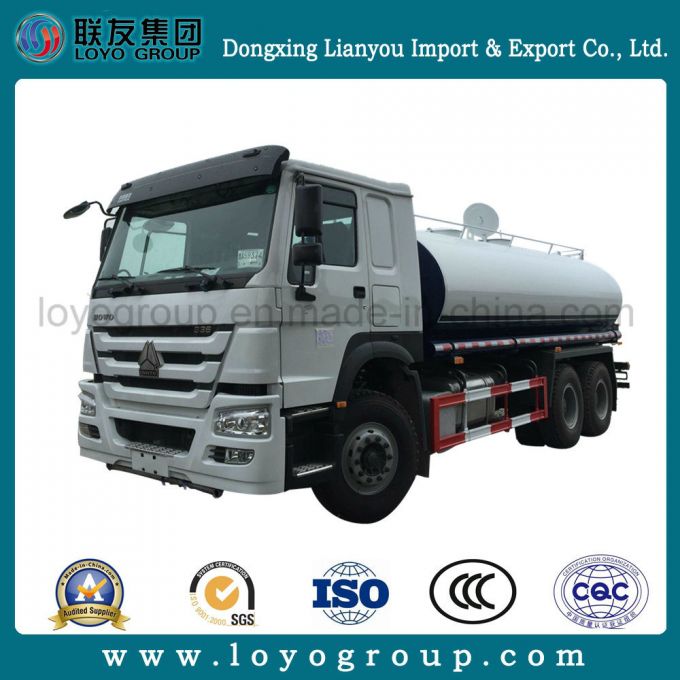

Sinotruk HOWO 6X4 20000L Water Sprinkle Tank Truck

HOWO7 6X4 20cubic Water Tank Truck
				Driving Type 6X4
Chassis Model				ZZ1257N4641W
Engine	Model			WD615.69
	Horsepower			336 HP
	Type			4-cylinder in-line with water cooling, turbo-charging and intercooling
	EuroIIIemission standard
Cab	SINOTRUK HW76,with one sleeper,Lengthen cab,left hand driving, with air conditioner, single bunk,new type seat, adjustable steering whell, EURO new type heating &ventilation system, German VDO instruments, safety belts, with stereo radio, sun visor, cassette recorder, air conditioner,
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUKHW19710transmission ,10 forward and 2reverse
Front Axle	SINOTRUK HF7 Front Axle,new 9-ton front axles
Steering	German ZF8198 Steering Gear Box ,hydraulic steering with power assistance
Rear Axles	SINOTRUK ST16 central reduction+hub reduction, cast axle housing, good for heavy duty transportation. Load capacity:16tons*2
Brake System	Service brake:dual circuit compressed air brake
	Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
	Auxiliary brake:engine exhaust valve brake. EVB
Tyres	295/80R22.5,Radial tyre with 1Spare tire
Electrics	Operating voltage:24 V, negative grounded
	Starter:24 V,7.5Kw
	Alternator:3-phase,28V,1500 W
	Batteries:2x12 V,165 Ah
	Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
Oil Tank	400L
Dimensions	Overall dimension(L xW xH mm) 10350×2496×3718(mm)
	Wheel base 4600+1350(mm)
Water Tank	Tank Volume	20 m3	Tank Shape:	oval	Capacity (gallon)	20000L
	tank material	Carbon steel	Body of material thickness(mm):	4mm	Sealing cap thickness(mm)	5mm
	Working type	Front jet, back spring,With Pump, with Duck billed sprinkler,cylindrical sprinklers,spray rod,6meters rubber hosepipe, High compressed spray system cannon on the backgroup operation. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
Weight (kg)	Kerb weight 11450
	Gross vehicle weight 25000
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer
	be suitable for long distance transportation of inland and ocean.

COMPANY PROFILE





Why choose SINOTRUK?

1. Engine
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at awide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.
4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.
5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.

2. Transmission
HW series heavy yupe transmission is anew generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.
Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.

3. Drive Axle
The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

4. Cab
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China ,comprehensively enhancing the safety.

5. Aluminum alloy fuel tank
CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.

LOYO Group
1. OUR ADVANTAGE:
(1)Competitive Factory Price and Excellent Quality
(2)More than 10 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

2. AFTER SERVICE:
LOYOGROUP PROMISE: We are always at your service to help purchase any spare parts and ship to our clients as per client's requirement.
For axles, the guarantee period is one year or 150,000 kilometers. Free maintenance is only for main parts of axle: axle beam, hub, and camshaft; excluding easy worn-out parts.
For chassis, the guarantee period is one year and the trailer must carry the Tons according to the standard capacity; If the problem caused by overload, we will not be responsible.
For Suspension, the guarantee period is 6month.
For Kingpin, the guarantee period is one year.
For landing gear, the guarantee period is one year.

3. FAQ

Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it OK ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q3: Can ihave samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1unit.

Q4: What others you can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.

Q5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in awhile, and we will help you to book the latest ship.

Q6: What's the delivery time ?

A: The delivery time is within 15-30 working days after receiving your advance payment.

Q7: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.
