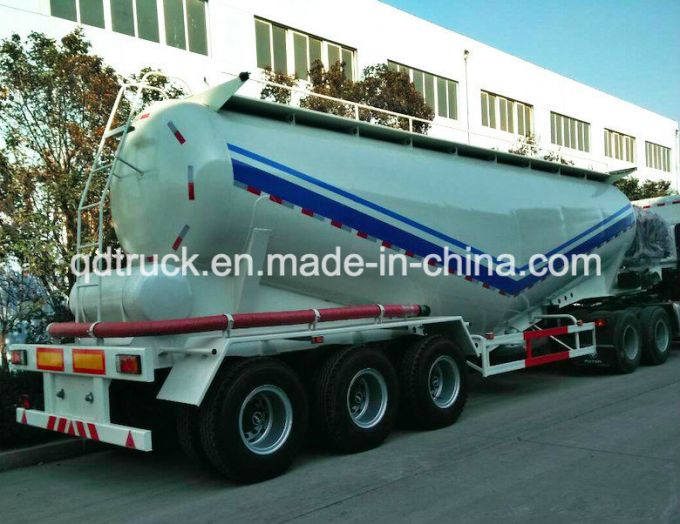

Bulk Cement Tanker Trailer For Cement

40cbm,50cbm Bulk Cement Tanker Trailer For Cement

DIMENSION:
OverallLength:10,625mm
OverallWidth:2,500mm
OverallHeight:3,990mm
LandingLegSetting:2,420mm
Wheelspan:5650mm
AxleSpacing:1,310mm
KingPinPlateHeight:1425mm
TANK:
TankVolume:42,000L(50.4ton)
Tankshell:carbonsteel,t=3.5mm/t=4mmthickness
Dishedends:4.5mmthickness
Pipematerial:Carbonsteel
DischargingHoseDiameter:4"
Dischargingvalve4"butterflyvalve
DischargingHoseLength:7,000mm
Hosequickcoupling:4"femalequickcoupling.
Fluidizer:Aerationpadwithairbag.
Dischargingcapacity:1m3/min
Workingpressure:0.2Mpa
Testpressure:0.3Mpa
Manhole:Two.
MAX.HorizontalDischargingDistance:5,000mm
MAX.VerticalDischargingDistance:15,000mm

RUNNINGGEAR:
Suspension:Undermounttri-axlesuspensionwithequalizer;
7-LeafSpring.
Axle:FUWASquareaxle,13Tcapacity,3pcs.
Brake:DuallinepneumaticbrakesystemwithoutABS.
ParkingBrake:Type30/30springbrakesystemoneachaxle.
Wheel:9.0-22.5,10holessteelDiscwheel,12pcs.Madeinchina
Tire:12R22.5,12pcs,tubelesstyre,madeinchina
KingPin:3.5"weldingtype.
LANDINGLEG:Twospeedmanualoperationtypewithsandshoe.
LiftingCapacity:25,000kg
StaticLoadCapacity:80,000kg

PNEUMATICSYSTEM:
Electromotor:HuafengZHBP124V,MadeinChina
AirCompressor:10m3/minMadeinChina
Mountedatthefrontoftrailer,
ELECTRICAL:
Voltage:24Volt.
Receptacle:7way
Light:FrontMarkerLamp:White
SideMarkerLamp:Amber
RearLamp:Red
TurnSignalLamp:Amber

STRUCTURALWEIGHTRATING:
TareWeight:9,300Kg.
PayLoad:50,400Kg.
G.V.W.R.:59,700Kg.
PAINTING:
Thetanker'scolorisasperyourrequirement.
Thesideguardisredandwhite.

GeneralDescription
VehicleName	BulkPowder/CementTank Semi-trailer
VehicleBrand	HTC
VehicleModel	WL9390GSN
OverallDimension(mm)	10750,9800x2500x3995
GrossWeight(kg)	38900
RatedPayload(kg)	27500
CurbWeight(kg)	11400
FifthWheelLoadApprox.(kg)	16000
RunningGear
Axle	3x13tonsFUWAaxle,Brand can be choosed
Wheelbase(mm)	5520+1310+1310
LandingLegs	BAOHUAlandingleg,Brand can be choosed
KingPin	BAOHUA2inchor3.5inch,Brand can be choosed
TyreNo.	12
TyreSpecification	11.00R22.5 16PR/11.00R20 12PR,11.00-20 12PR,12R22.5 12PR
SpringLeafNo.	/10/10/10
AxleLoad(kg)	-/24000(parallelinstalled)
ElectricSystem
24Velectricsystem,electricalsocketforlighting,rearlampforparking,direction,fog,
reverseand4sidelights.
TankBody
TankShape	cylindrical
TotalVolume	58,000ltrs~60,000ltrs
TankMaterial	Hightqualitycarbonsteel,4mm
TankThickness	4mm
Suspensiontype	Commonmechanical
Compartments	Compartment optional.(standard only one)
Manhole	Internal Clasping Type or A Shape External Pressing Type
NecessaryAccessories	Topaccessladder,anti-slipwalkwayandfoldablehandrail,
	sparewheelcarrier,dischargehose,reflectivestickers
AirCompressor
Brand	Chinesefamousbrand
DischargeSpeed	1.0~1.3tons/min
DischargeHeight	>25M

WHY you trust and choose us?

1. Complete production line, from trailer Design to Delivery.

2. ISO 9001: 2008 and CCC quality certificate.

3. Use 100% famous brand spare parts in China for our products.

4. OEM/ODM service. Just tell us your idea, our R&D team is standing by.

5. We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.

6. We accept 100% inspection, welcome to our factory at any time.
