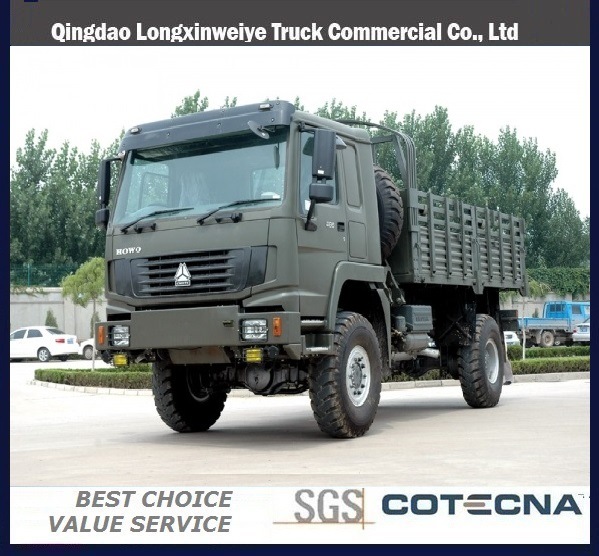

4X4 Cargo Truck/ Lorry Truck

4X4 Cargo truck & Lorry Truck

Cargo Truck & Lorry Truck & heavy Truck
Quality heavy truck designed from military manufacturer.
Reliable quality with competitive price.

POWER Engine: WEICHAI, CUMMINS, MAN
GEAR BOX: EATON FULLER, FAST
CABIN: STEYER, MAN(F2000, 3000)
EMISSION: EURO 2, 3, 4, 5

STEYER, MAN, BENZ,HOWO design platform. INTERNATIonAL QUALITY STANDARD
Cabin				air deflector,air-condition ,single or double sleeper, USB application,
				electric window lifter,GPRS management system. MAN/STEYER cabin
Drive type				Left hand / right hand, 4x2,6x2,6x4,8x4,6x6.
Engine : WEICHA I(WP series ,WD series) CUMMINS series:
Type				Diesel 4-stroke direct injection engine,
				6-cylinder in line with water cooling, turbo-charging& inter cooling.
Number of cylinder				Inline six-cylinder		BOSCH oil pump
Displacement				5.762L, 11.596L
Emission				Euro 2,3,4
Max torque (kg.m/rpm)				1 070NM-2000NM@1400-1600rpm
Cl u tch
Type				φ 430 diaphragm construction
				Single-plate dry cluth,mechanically operating with air assisted
Gear box ,Transmission
Model				FAST FULLER(recommendation), ZF 8098,
Type				9,10,12,16 speeds AS ( Automatic Synchronizer )
Gear box				Mechanical form , Remote control device
Front axle
Type				STYER / HANDE,
Permissble load			Kg /axle	65 00 kg,7500kg
Rear driving axle
Model				STYER / HANDE driving axle
Type				Pressed axle housing,single/double reduction with planetary wheel reduction.
Permissble load		Kg /axle		1 3000kg,16 000 kg
Track				1800/1860
Transmission ratio				4.42 4.80 5.73 6.72 7.49 8.40 9.94
Tyre :
				Bias/Radial TYRE 315/80R22.5 / 12.00R20
Braking sytstem
Brake					ABS,ASR
Service brake					Dual circuit pneumatic brake
Parking brake					Spring energy,compressed air operating on rear wheels
Hanging
Type	FR/RR				Spring plate,Lug/Multi-leaf spring
Electric equipment
Operating voltage					24v,negative grounded
Battery voltage/capacity					12v/135A,165A
Turning technology					ZF8098 hydraulic pressure steering system
Oil Tank : 38 0L -1000L
Dimension of King pin(5th wheel): 50(2''),90(3.5'').
Other option: PTO, more than 20 colors' surface, strengthen leaf spring.mainly as your requests.
