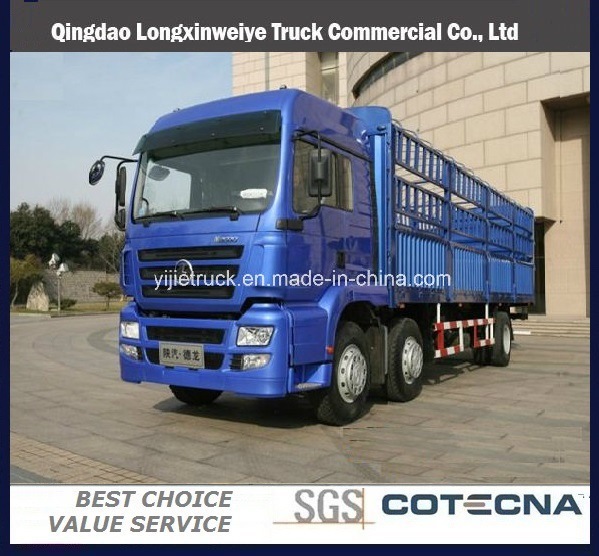

Shacman 10ton Capacity Cargo Truck (SX1254JP464)

Shacman 10ton Capacity Cargo truck (SX1254JP464)

Model: SX1254JP464
Traction type: 6x4
Driving type: LHD (RHD can be optioned)
Cabin: MAN cab extra lengthened extra width normal-roof

Engine brand: Steyr (Weichai)
Engine model: WD12.336
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 11.596 liters
Max. Output: 336HP@2200rpm
Max torque: 1300NM@1200-1650rpm
Bore/Stroke(mm): 126/155
Mean Position Speed: 9.53m /s
Compression ratio: 15.5: 1
Specific fuel consumption: 195g /Kwh

Gear box: Fuller 12 speeds (12JS160T)

Clutch: D430 Diaphragm type

Steering: ZF technology
Front axle: Steyr front axle
Rear axle: Steyr strengthened axle (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)
frame: 300mmx80mmx 8mm (inner: 275mm*70mm*5 mm )
Tyre: 12.00-20 (rim: 8.5-20)
Spring: 9/12, 10/12
Fuel consumption (L/ 100km ): 36
Fuel tank capacity (L): 380
Max. Speed (km/h): 92
Max. Gradeability(%): 28
Kerb. Mass: 10950 kg
Total mass: 25000kg
Wheel base (mm): 4600+1350
Front overhang (mm): 1525
Rear overhang (mm): 2291
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 18 degree
Departure angle: 66 degree
Dimension (mm): 9766x2490x3210
Body size: 6940mm*2326mm*800mm.

Model	SX1254JL564
Drive type	6×4
Weight
Complete kerb mass (kg)	11390
GVW (kg)	13480
GCW ( kg )	25000
Dimensions
Max.length(mm)	11839
Max.width(mm)	2490
Max.height(mm)	3210
Wheel base(mm)	5625+1350
Track width(mm)	2050/1800
Engine
Brand	WEI CHAI
Model	WD615.56
Power(kw/HP)	260
Max.Torque (N.m )/rpm	1100/1300-1600
Displacement (L)	9.726
Emmission Standards	Euro II
Transmission
Brand	FAST
Model	8JS118
Control type	Manual
Gear Shift	8-forward and 1-reverse speeds
Clutch
Type	Spring plate , diaphragm spring
Diameter (mm)	φ430
Action	Mechanical type , hydraulic, and pneumatic operation
Brakes
Type	Drum
Service brake	With dual-circuit compressed air brake
Park brake	Power spring brake acting on rear wheel
Auxiliary brake	WEVB
Option	ABS
Steering
Type	Integral circulating ball power sreering
Option	ZF8098
Chassis
Type	Ladder structure with parallel straight
Suspension
Front Suspension	Longitudinal leaf spring
Rear Suspension	Inverted leaf spring stabilizator suspension
Axles
Brand	HANDE
Front axle	7500kg
Rear axle	13000kg(each) Double reduction driving axle with inter-wheel differential and differential lock.
Ratio	4.8
Tyres
Type (Standard)	12.00-20
Option	12.00R20/11.00-20/11.00R20/12R22.5
Fueltank
Tank capacity (L)	380
Material	metal
Electrics
Type	24V
Starter	5.58kw ( 24V )
Generator	1.54kw ( 28V 55A )
Battery	2×135Ah
Cab
Type	MAN F2000 Lengthened Flat Roof
Equipments	2 rear window,mechanical clerestory, hydraulic suspension cab,hydraulic chair with seatbelts,one sleeping bed , hydraulic reversal cab,with USB,can play radio with MP3 format
Option	electric windows , electricity heated rear-view mirror , CD , 4 point air suspension , A/C,air suspension driver seat with handle and seatbelts,electricity reversal cab
Other
Platform Dimensions (mm)	9010*2326*500
