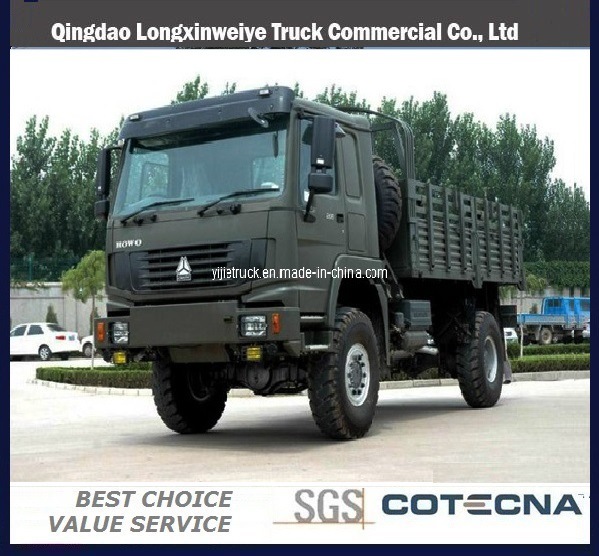

HOWO All Wheel Drive Cargo Truck (4X4)

HOWO All Wheel Drive Cargo truck (4x4)

Features:
4x4, offroad driving
Clutch: GF430 Diaphragm type
Driving axle: Double reduction driving axle
Steering gear: ZF technology

Cabin		HOWO Long cabin with single sleeper, with safety belt, with High level steel bumper
Kerb mass (kg)		8950kg
Max. total mass (kg)		20000kg
Max. speed (km/h)		85
Approach angle		16°
Departure angle		15°
Min. turning circle (m)		≤27
Min. ground clearance (mm)		265
Appearance dimensions (mm)	Max. Length	8100
	Max. Width	2500
	Max. Height	3000
Overhang(front/rear)		1500/1890
Wheelbase		4300mm
Engine		Sinotruk---WD615.62
Engine type		Diesel 4-stroke direct injection engine, 6-cylinder in-line, water cooled, turbo-charging & intercooling
Rated output power		266HP
Torque (N.m / r. p. M)		1160/1100-1600
Displacement (L)		9.726
Min. fuel consumption (g/ kW.h)		≤195
Clutch		Ø430 diaphragm type
Gear box	Transmission	HW15710C
Steering		ZF8098, hydraulic steering with power assistance Ratio: 22.2-26.2:1
Front axle		Steyr technology steering and driving axle with double T-cross section
Drive axle		Steyr technology central reduction with planetary wheel reduction (hub reduction) and differential locks between wheels and axles Ratio: 4.42
Tyre		12.00-20
Fuel consumption(L/100km)		28
Fuel tank capacity (L)		400
Cargo body dimensions (LxWxH) mm		5000x2326x800
