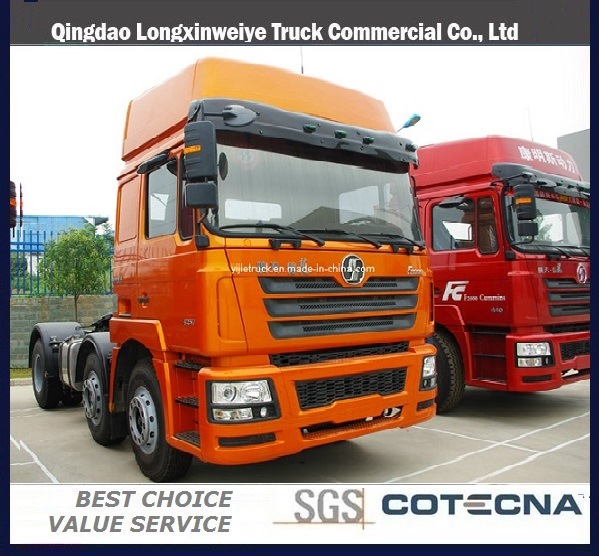

D′long F3000 420HP Cummins Tractor Trailer Head

D'long F3000 tractor head& trailer head

Traction type: 6x4
Driving type: LHD(RHD is option)
Cabin: MAN cab extra lengthened series extra widened with high-roof(A/C)

Engine
Engine brand: Steyr (Weichai)
Engine model: ISM420 30
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
With water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output:
Max torque:
Bore/Stroke(mm): 126/130
Mean Position Speed: 9.53m /s
Compression ratio: 15.5: 1
Specific fuel consumption: 198g /Kwh

Gear box:
Model: Fuller 12 speeds (12JS200T)

Clutch:
Model: D430 Diaphragm type

Steering: ZF technology

Front axle: MAN technology 7.5ton front axle
Rear axle: MAN16t driving axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Tyre
Tyre: 12.00-20
Spring: 9/12
Fuel consumption (L/ 100km ): 38
Fuel tank capacity (L): 380
Max. Speed (km/h): 92
Max. Gradeability(%): 28
Kerb. Mass: 9050 kg
Towed mass: 40000kg
Wheel base (mm): 2925+1350
Front overhang (mm): 1525
Rear overhang (mm): 800
Front track (mm): 1939
Rear track (mm): 1800
Turning circle diameter: 14.2 m
Approach angle: 16 degree
Departure angle: 66 degree
Dimension (mm): 6600x2490x3750
5th wheel: 2.5"(3.5" is optioned)

Tractor Truck	Driving type: 6x4 based onMAN Design platform
Cabin	Air suspension MAN F2000 low cab with sleeper, hydraulic shock absorb adjustable seat, safety belt,
adjustable steering, A/C, sunroof, sun cap, bumper
Engine	Diesel, 4-stoke Direct injection, 6-cylinder in line, radiator, Turbo-charging.
Model:	WD615.34	European technology WEICHAI brand (Euro 2)
	Engine power	340hp/250kw
	Displacement(L):	9.726 Liter
	Max torque:	1350NM@1200~1600
	Bore/stoke:	126mm/130mm
Gear box		Applied American technology
	Model:	FAST 9JS135
	Speed:	9speed, 1reverse
Axle(front/rear)-Military axle
Front axle	7.5ton MAN technology non-driving steering axle
Tandem	13T STR technology double reduction, hub redactor driving axle
(Driving axle)	Wheel differential locks
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting.
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF technology, driver sit at the RIGHT hand side (RHD)
Electric Equipment
	Operating voltage:	24Vnegative grounded
	Starter:	24V,5.4KW
	Alternator	28V,758W
	Batteryvoltage	12V/135Ah,cigar lighter
frame	850mm (width)-Variable sections strengthened frame, made as tough road condition
Tyre	10+1 spare tyre with wheel
	12.00-20 bias tyre
Suspension system: Leaf spring type
	Front/Rear	10/12
Overall dimension(mm): 6600x2490x3210/3950 (Length x width x height)
Wheelbase	2925+1350mm
Track:
	Front/Rear	1939/1800/1800
	Approach/Departure angle	16/66
	Front /Rear overhang	1525/800
	Max speed	92km/h
Curb weight:	9210kg	Diesel tank	380L
