Shacman 6X4 Agitator Truck 8 M3 Concrete Drum Mixer Truck

  • Shacman 6X4 Agitator Truck 8 M3 Concrete Drum Mixer Truck
  • USD 45000.50 /Unit
  • 1 Unit
  • 80 Unit
  • 18 days
Product Description
Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.
Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.

Features of Shacman concrete mixer truck
1. Shacman 10 m3 cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.

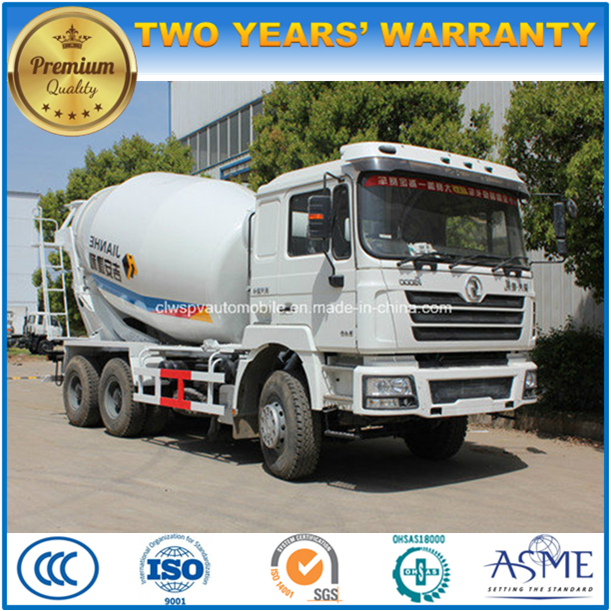

Agitator Truck show

Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck

Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck
Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck
Specification
cement mixer Truck
Left /right hand drive with air conditioner
ModelSCL5251GJBA4
Gross weightkg25000
Curb Weightkg10870
Overall Dimensionmm9500x2490X3950
Tank volumem310
Wheelbasemm3800+1350
Axle load kg7000/18000
Wheel TrackFrontmm2050
Rearmm1850
Minimum Ground Clearancemm550
EngineISLe320 30, water - cooled, 4 - stroke, direct injection, and intercooled
PowerkW195
Engine manufacturerDongfeng Cummins Engine Co Ltd
Emission standardEuro 3
TransmissionFaster , 9+1
Torque1400N·m
Maximum torque speed1200-1400rpm
Rated speed1750rpm
Fuel ConsumptionL/100Km28-33
Fuel Tank CapacityL300
Fuel typeDiesel
Tires12.00R20
Rear axle ratio5.2
Maximum Speedkm/h85
Maximum Grade ability%25
Minimum Turning Circlem19
Max. Brake Distance(Fully laden,30km/h)m9.5
Material of tank bodyAlloy manganese steel
Volume of water tank400L
Thickness of tank (mm)Body Thickness:6
Sealing head Thickness:8
ReducerGerman ZF brand
Hydraulic system German REXROTH brand
Cooling systemChina well-known brand
Feeding speed≥3 m3/min
Running speed0-14 r/min
Output speed≥ 2 m3/min
Residue rate≤1%

Composition and major components of the mixer truck

Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck
Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck

Concrete delievry truck for export
Shacman 6X4 Agitator Truck 8 M3 Co<em></em>ncrete Drum Mixer Truck
