Foton 10 Wheels 6 Cubic Meters Cement Mixer Concrete Delivery Truck

  • Foton 10 Wheels 6 Cubic Meters Cement Mixer Concrete Delivery Truck
  • USD 32000.39 /Unit
  • 1 Unit
  • 25 Unit
  • 27 days
Product Description
Cement mixer truck made of chassis, mixing cylinder, transmission system, water supply and other components. Mixer hydraulic motor, variable piston pump, reducer, cooler are all imported brands.

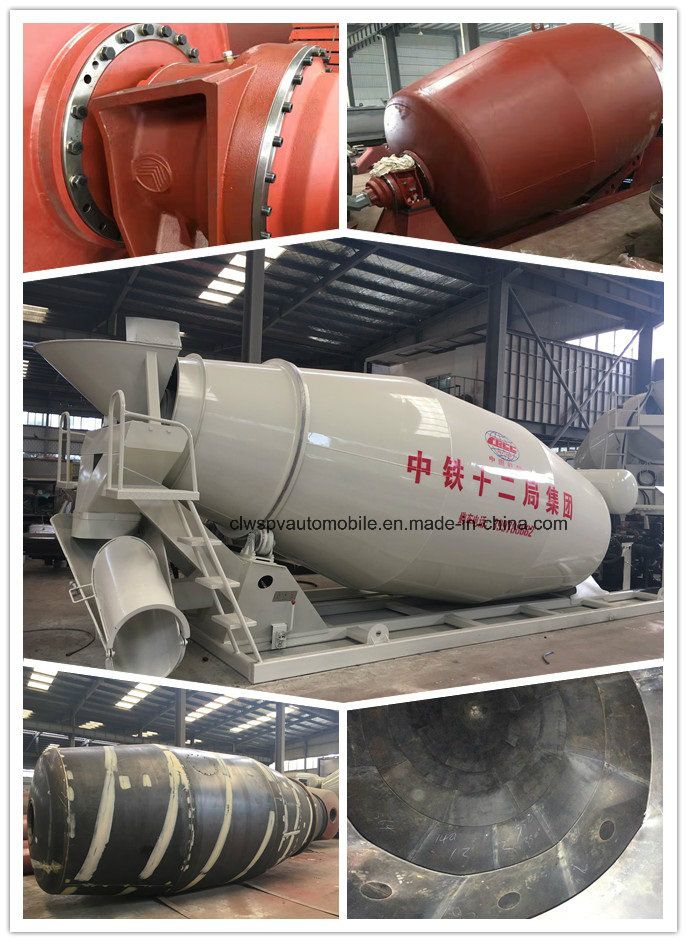

Mixer components: two types of chassis, transmission system, hydraulic system, rack, mixing tank, into the material device, water supply system, control system, people ladder and other parts.
Concrete mixer main special accessories including power take, stirring cylinder front and rear support, reducer, hydraulic system, mixing tube, control mechanism, cleaning system.
The working principle: the power of the chassis is removed by the power take-off force, and drive the hydraulic pump of the hydraulic system. The mechanical energy can be converted into hydraulic power to the hydraulic motor. The motor drives the reducer again and drives the mixing system by the reducer.
Cement mixer truck can be customized from 2 m3 to 20 m3, on tricycle, 4x2, 6x6, 6x4, 6x2, 8x4, 8x6 chassis and so on.
Features of Foton 6x4 Mixer truck
1. Foton 8 cbm cement mixer truck made of reducer, pump, motor, cement drum, radiator, pipe network system, vacuum gauge, water system, charge and discharge and other components.
2. Truck equipped with imported hydraulic system: Germany ZF, Italy PMP and Germany Rexroth brands reducer; Italy PMP, Germany Rexroth and the United States Sauer brands pump and motor, which make our truck more Stable in operation, lower failure rate and longer service life.
3. Drum is with Q345 high wear-resistant manganese steel, head 8mm, drum body 6mm, and 5mm high-strength steel leaf is wear-resistant manganese steel 520JJ.
4. Our company installs the wear-resistant steel strip on the blade (effectively reduces the drum's wear and prolongs the service life of the drum), the spiral layout of the blade adopts the international leading technology, which can reduce the concrete residue to 2% ~ 3%, and it reached the leading level in the same industry.



Specification
Chassis modeCLW3005GB31 cement mixer
Overall dimension(mm):9800x2500x3995Wheelbase (mm)4100+1350
Total mass (kg)25000Curb mass (kg)15100
Engine modelYC6MK340-40
Engine type6-cylinder engineEngine manufactuerGuangxi Yuchai Engine Co., Ltd
Power (kW)250Transmission8-speed transmission
Wheels & Tires10R20
Effective Mixing Volume (m3)8
Mixing Capacity (m3)5
Discharging Speed (m3/min)3
Rotation Speed (r/m)0-18

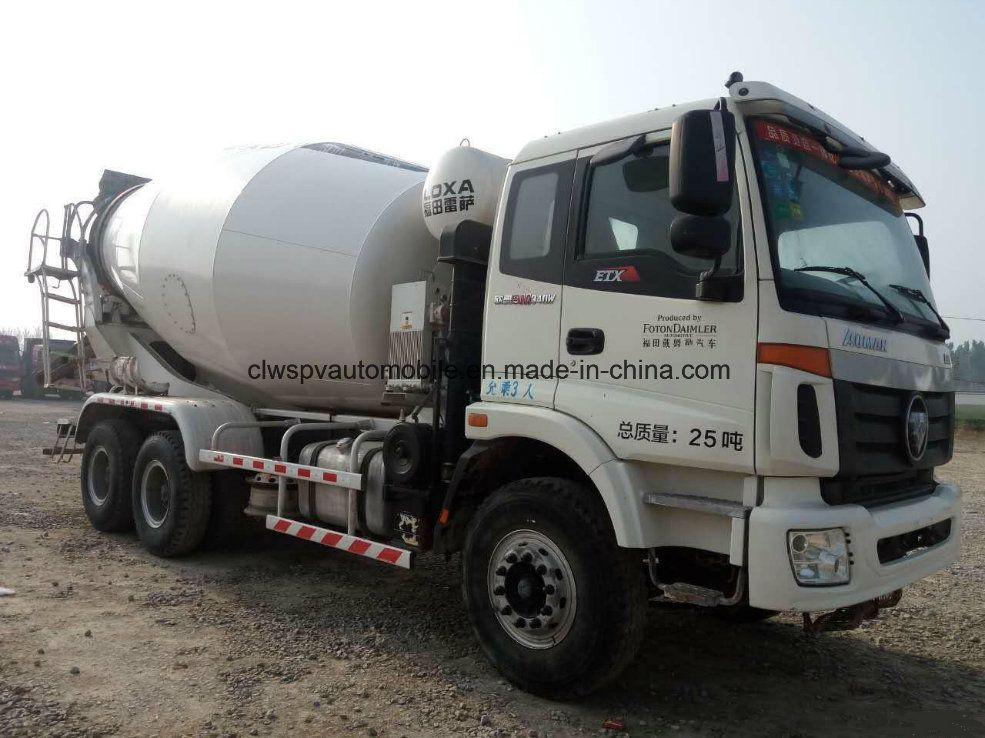

Agitator Truck show

Foton 10 Wheels 6 Cubic Meters Cement Mixer Co<em></em>ncrete Delivery Truck
Foton 10 Wheels 6 Cubic Meters Cement Mixer Co<em></em>ncrete Delivery Truck


Foton 10 Wheels 6 Cubic Meters Cement Mixer Co<em></em>ncrete Delivery Truck

Foton 10 Wheels 6 Cubic Meters Cement Mixer Co<em></em>ncrete Delivery Truck

Similar mixer truck for export
Foton 10 Wheels 6 Cubic Meters Cement Mixer Co<em></em>ncrete Delivery Truck

Q&A
1.Q:Are you amanufacturer or trading company?
A:We are manufacturer. You are welcomed to visit our factory.
Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China
2.Q:What kind of payment do you accept?
A:We accept T/T and L/C usually.
If you want to use others payment, contact us for /confirm/iation.
3.Q:Can you customize trucks according to customers' need?
A:Yes, product customization service is our speciality.
4.Q:What's your after-sale service?
A:We provide technical support for our products.
Besides, we also provide spare parts as long as customers need.
5.Q:What's your delivery time?
A:It depends on the quantity, usually takes 10-15 working days.
