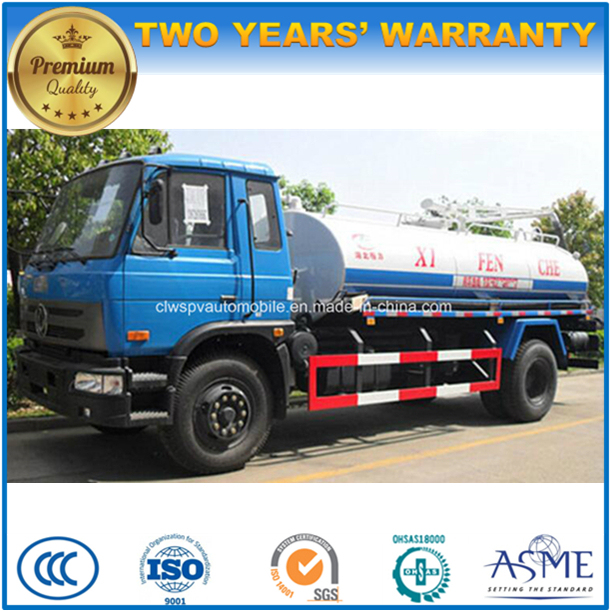

Dongfeng 4X2 6 Wheels 8000 L Fecal Suction Vacuum Tank Truck

Fecal suction truck used for pumping feces, sewage, sludge and mixed with small suspended debris of the liquid, with high suction efficiency, self-absorption, self-row and direct irrigation function.
Fecal suction truck has a long life, fast speed, large capacity, simple operation, easy transportation and so on.
Fecal suction tank body is with a one-time molding mill technology, straight and full welding, CT detection, no bubbles, no broken and no point. After the high pressure gas leak detection test and the shot peening pretreatment process, the tank can realize the anti-rust. The tank has the characteristics of high strength, strong center of gravity and safe and smooth transportation.
By installing anti-overflow device, the tank can prevent feces, sewage suction and irrigation to the vacuum pump system.
Paint with high imitation metal paint metal coating, the appearance of more stylish and beautiful, anti-rust longer time.

Fecal suctiontruck features
1, the use of domestic mature chassis, the use of safe and reliable;
2, the tank through the strict overall pickling, anti-corrosion treatment, and coated with a special anti-corrosion non-toxic paint, has a good rust resistance;
3,imported first-class vacuum pump, good lubrication, reliable work, low fuel consumption, coupled with a good pumping capacity, so to ensure the exhaust system is reliable;
4, with a vacuum suction, pressure discharge and self discharge of three functions, the pipeline design is novel and advanced, easy to install and maintenance, so that the operation is greatly simplified;
5, hydraulic system control valve, cylinder, connecting pipe and other key parts, advanced structure, reliable performance, simple operation, convenient maintenance;
6, the top of the tank is installed with anti liquid overflow device controller.
7, the left front of the tank is provided with an organic glass liquid level display tube, which can clearly show the inner surface height of the tank body.

Fecal suction truck show







Congfigurations of fecal suction tank truck

Specifications

Vehicle model	CLW5071GXW4
Chassis model	EQ1060TJ20D3
Overall dimensions	1195x2500x2550 mm
Tnaker volume	8000-10000L
GVW	Appro*12300
Rated loading capacity	Appro*6300
Wheel base	3950 4500
F/R track base	1404,1460/1458
Approach/departure angle	19/14
Max speed	90 km/h
Tire specification	7.00-16,6.50-16,7.00R16,6.50R16
Engine type	ISB302
Engine power	155 kW
Engine manufacturer	DongfengChaoyang Diesel Power Co. Ltd
Transmission	8-speed with over drive
Configuration	Special vacuum pump,power take off, transmission shaft, high pressure sewage tank,pipe network, sewage pipe for observing and cleanout equipment
Vacuum pump	Vertical suction>8m, horizontal suction>50m, rotation speed 1400r/min, minimum rotation speed 800r/min, power 5 kW, pumping speed 68L/s.
Production cycle	10-15 days
Warranty	At least 12 month,from the date of supply

Q&A

1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality.

4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need.

5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days.
