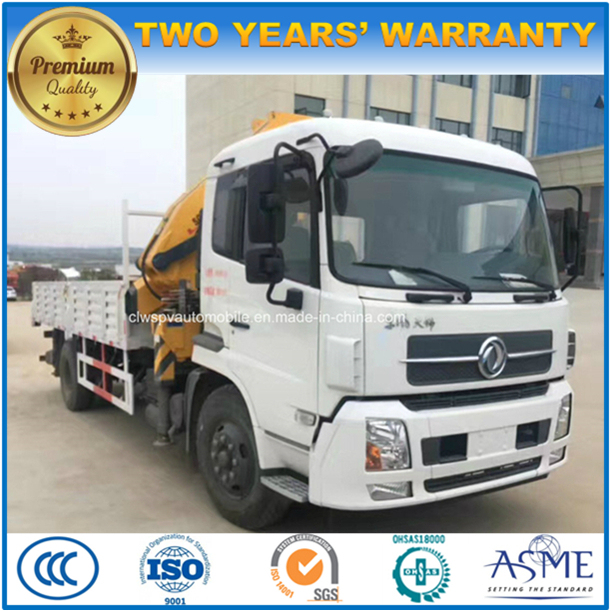

Dongfeng LHD 180HP Hydraulic Truck Mounted Foldable Arm Crane Truck

Specification

CLW5506SCD Truck With Crane
Chassis Model		EQ1160GX5D
Loading Capacity		kg	10500
Gross Vehicle Weight		kg	18900
Curb Weight		kg	8500
Overall Dimension		mm	8050x 2490 x 3200
Wheelbase		mm	4500
Wheel Track	Front	mm	1900
	Rear	mm	1800
Minimum Ground Clearance		mm	400
Engine		ISDE210 40, Turbo ,6-Cylinder, In line, Diesel
Power		kW	198
Engine manufacturer		Dongfeng Cummins Engine Co., Ltd
Fuel Consumption		L/100Km	13
Fuel Tank Capacity		L	400
Transmission		Fuller RT-21501B
Ratio		12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1.00 12.99( r )
Steering		ZF8098, Hydraulic powered
Tires		10R20
Maximum Speed		Km/h	90
Maximum Grade ability		%	28
Minimum Turning Circle		m	18.6
Max. Brake Distance(Fully laden,30km/h)		m	9.5
Swing Angle		o	360

Optional Crane
well-known crane brands can be chosed:
A.6.3-ton,4-section straight arm, lifting height of 12.8 meters, working radius of 11 meters, all rotation.
B.6.3-ton,4-section foldable arm, lifting height of 13 meters, working radius of 9.92 meters, all rotation.
C.8-ton,4-section straight arm, lifting height of 13.5 meters, working radius of 11.5 meters, all rotation.

Truck With Crane & Factory Show










Q&A

1.Q: Are you a manufacturer or trading company? A:We are manufacturer.You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China

2.Q: What kind of payment do you accept? A: We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation.

3.Q: Can you customize trucks according to customers' need? A: Yes,product customization service is our speciality.

4.Q:What's your after-sale service? A: We provide technical support for our products. Besides, we also provide spare parts as long as customers need.

5.Q: What's your delivery time? A: It depends on the quantity, usually takes 10-15 business days.

Chengli automobile co.,Ltd covers an area of about 67 hectares, more than 8000 employees, production and sales of various special vehicles more than 300 kinds.
Our company is keeping growing during 15 years. Our sales revenue reached 400 million dollars and exports reached 20 million dollars in 2016.
Our leading varieties include refuel tank truck, sprinkler, tank truck, Garbage Truck, suction truck, Sewage Suction Truck, Dump Truck, van, trailer, wrecker, truck cranes, aerial vehicles, coach cars, Bulk Cement Truck, chemical trucks, fire truck, cement mixer, tractor and other eight series of more than 300 a variety of models. Special van, feed truck, LED advertising vehicle, the American school bus and Recreational Vehicle,ect.
We have got five first in the field of special automobile:
1.Sanitation car sales ranked first in the country;
2.Special vehicle production and sales ranked first in the country;
3.The first private enterprise pass the test of the A2, C2 three types of pressure vessel by once;
4.The first private enterprise through the enterprise qualification approval of low-speed truck test by once;
5.The first private enterprise through the new national standard of fire acceptance.

Seeing is believing! Welcome to visit our factory!
We will customize the best trucks for you!
