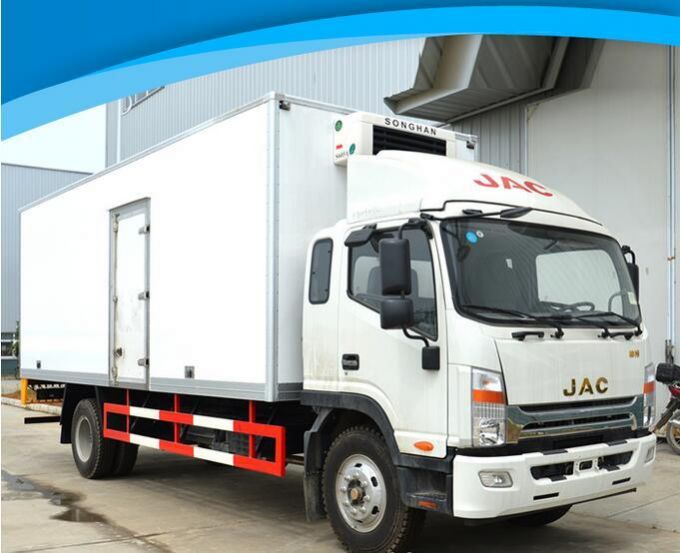

JAC 5-6t 4X2 Refrigerator Cargo Truck

JAC 5-6T 4x2 refrigerator Cargo truck
1),Product model and name: HFC5101XLCP71K1D4 Refrigerator truck
2),Approach/departure angle(°):28/11
3),Front/rear hang(mm): 1180/2585
4),Axle load(Kg):3595/6400
5),Chassis model:HFC5101XXYP71K1D4
6),Tyre specification:8.25-20
7),Emission standard: Euro 4
8),Fuel type :Diesel

Main specification
Product model and name			HFC5101XLCP71K1D4Refrigerator truck
Gross weight(Kg)			9995		Drive type				4x2
Payload(Kg)			4600		Overall dimension(mm)				8500x2405x3705
Curb weight(Kg)			5200		Cab seats				3
Approach/departure angle(°)			28/11		Front/rear hang(mm)				1180/2585
Axle No.			2		Wheelbase(mm)				4700
Axle load(Kg)			3595/6400		Max speed(Km/h)				98
Chassis specification
Chassis model	HFC5101XXYP71K1D4			Manufacturer				China Anhui Jianghuai Automobile Co., Ltd.
Brand name	JAC			Dimension(mm)
Tyre specification	8.25-20			Tyre No.				6
Steel spring number	8/10+10			Front track base(mm)				1660
Fuel type	Diesel			Rear track base(mm)				1724
Emission standard	Euro4			Transmission				6 forward gears , 1 rear gear
Cab	Flat topped with a rowand ahalf, with the direction of power, air conditioning
Engine model	Engine manufacturer						Displacement(ml)				Power(Kw)
ISF3.8s4R141	Beijing FotonCumminsEngineCo.,Ltd						3760				105
Performance
Van body size(mm)		6200x2170x2270				Load capacity(TON)				5-6
Lowest refrigeration temperature		-18 Centigrade
